Removal And Installation: Camshafts: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the camshaft timing chains from the camshafts. Refer to CAMSHAFT TIMING CHAINS, REMOVING FROM CAMSHAFTS .

-- To remove the camshafts in the left cylinder head, remove the vacuum pump. Refer to OVERVIEW - VACUUM PUMP .

-- To remove the camshafts in the right cylinder head, remove the high pressure pump and pump motor housing. Refer to Removal and Installation .

-- Remove the bolt -arrows- and the camshaft adjuster valves.

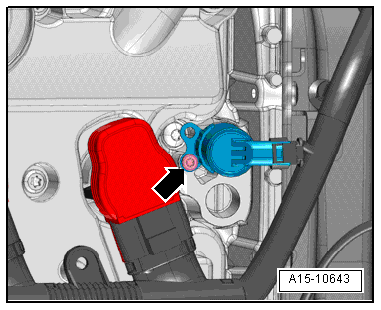

Fig 1: Identifying Camshaft Adjustment Valve And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector -1- on the camshaft position sensor.

Fig 2: Identifying Connector -1- And Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -arrow-.

-- Loosen the guide frame bolts in the following sequence: -21 to 1-.

Fig 3: Identifying Guide Frame Bolt, Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Proceed in the same way with the right guide frame.

-- Remove the bolts, carefully loosen the guide from out of the bond and place is on a soft surface.

-- Remove the T40133 -arrows-.

Fig 4: Identifying Camshaft Adjuster T40133

Courtesy of AUDI OF AMERICA, LLC

-- Mark the camshafts and then remove them.
