Adjusting Buffer, Convertible Top Compartment Cover Locking Motor, End Panel

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

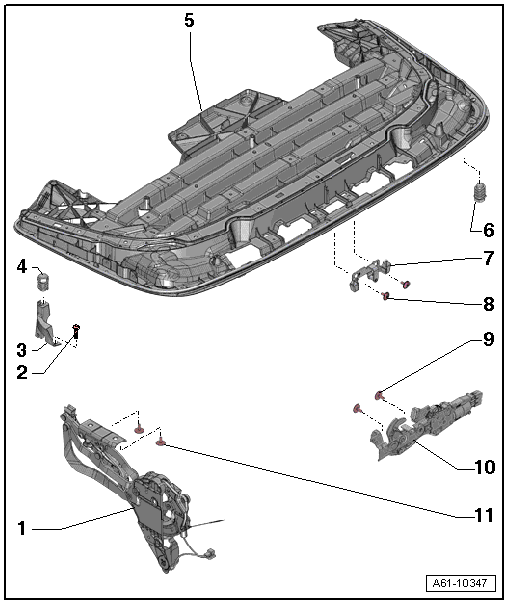

Fig 1: Identifying Adjusting Buffer, Locking Motor And End Plate Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hinge
- For the convertible top compartment cover
- Overview. Refer to OVERVIEW - HINGE AND HYDRAULIC CYLINDER .
Bolt
- 8 Nm
Bracket
- For the adjusting buffer
- Removing and installing. Refer to SIDE ADJUSTING BUFFER BRACKET, REMOVING AND INSTALLING .
Side Adjusting Buffer
- Removing and installing. Refer to SIDE ADJUSTING BUFFER, REMOVING AND INSTALLING .
- Adjusting. Refer to CONVERTIBLE TOP COMPARTMENT COVER, ADJUSTING .
Convertible Top Compartment Cover Inner Section
- Overview. Refer to OVERVIEW - CONVERTIBLE TOP COMPARTMENT COVER .
Center Adjusting Buffer
- Removing and installing. Refer to CENTER ADJUSTING BUFFER, REMOVING AND INSTALLING .
Striker
- Removing and installing. Refer to CATCH, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Bolt
- 21 Nm
Convertible Top Compartment Cover Locking Motor -V222-
- Removing and installing. Refer to Convertible Top Compartment Cover Locking Motor -V222-, REMOVING AND INSTALLING .
Bolt
- 21 Nm
