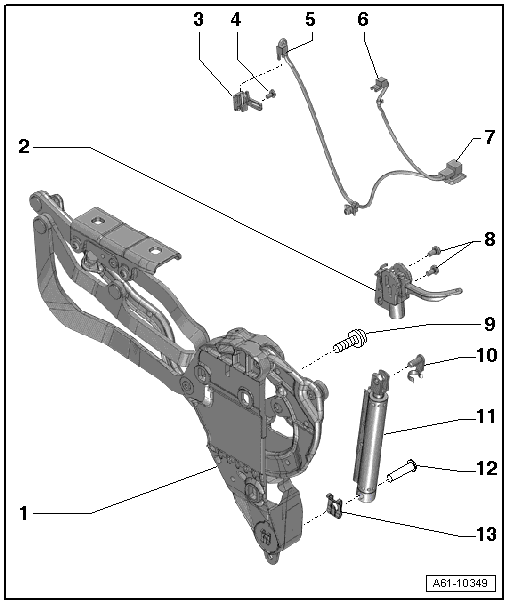

Overview - Hinge And Hydraulic Cylinder
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Hinge
- For the convertible top compartment cover
- Removing and installing. Refer to HINGES, REMOVING AND INSTALLING .
- Emergency Release
- For the convertible top compartment cover
- Removing and installing. Refer to CONVERTIBLE TOP COMPARTMENT COVER EMERGENCY RELEASE, REMOVING AND INSTALLING .
- Bracket
- For Convertible Top Compartment -Open- Switch -F407-
- Bolt
- 3 Nm
- Convertible Top Compartment -Open- Switch -F407-
- Removing and installing. Refer to Convertible Top Compartment -Open- Switch -F407- / Left Convertible Top Compartment Cover Switch -F290-, REMOVING AND INSTALLING .
- Convertible Top Compartment Cover Switch
- Left Convertible Top Compartment Cover Switch -F290-
- Removing and installing. Refer to Convertible Top Compartment -Open- Switch -F407- / Left Convertible Top Compartment Cover Switch -F290-, REMOVING AND INSTALLING .
- Right Convertible Top Compartment Cover Switch -F291-
- Removing and installing. Refer to Right Convertible Top Compartment Cover Switch -F291-, REMOVING AND INSTALLING .
- Central Connector
- For Left Convertible Top Compartment Cover Switch -F290- and Convertible Top Compartment -Open- Switch - F407-
- Bolt
- 9 Nm
- Bolt
- 21 Nm
- Mounting Pin
- With clip
- Hydraulic Cylinder
- For the convertible top compartment cover
- Removing and installing. Refer to CONVERTIBLE TOP COMPARTMENT COVER HYDRAULIC CYLINDER, REMOVING AND INSTALLING .
- Pins
- For securing the hydraulic cylinder
- Clip
