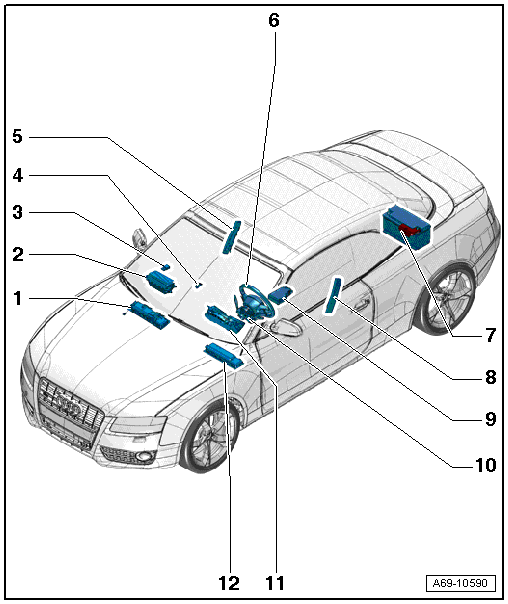

Component Location Overview - Airbag System
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Knee Airbag
- with Front Passenger Knee Airbag Igniter -N296-
- Market-Specific Version
- Removing and Installing. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
- Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
- With Front Passenger Airbag Igniter 2 -N132- depending on the date of manufacture. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- Deactivating and activating possible with Front Passenger Airbag Deactivation Key Switch -E224-.
- Front Passenger Airbag Deactivation Key Switch -E224-
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING .
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Located in a shared housing with the Emergency Flasher Button -E229-
- Removing and installing. Refer to CONTROLS .
- Thorax Airbag on Front Passenger Side
- with Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Removing and Installing. Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Driver Side Airbag
- With Driver Airbag Igniter -N95- and Driver Airbag Igniter 2 -N250-
- Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
- Removing and Installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- Battery Interrupt Igniter -N253-
- Overview. Refer to OVERVIEW - BATTERY INTERRUPT IGNITER .
- Removing and Installing. Refer to BATTERY INTERRUPT IGNITER, REMOVING AND INSTALLING .
- Thorax Airbag on Driver Side
- with Driver Thorax Airbag Igniter -N199-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Removing and Installing. Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Airbag Control Module -J234-
- Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
- Removing and Installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing. Refer to STEERING COLUMN SWITCH MODULE .
- Airbag Indicator Lamp -K75-
- Component location: in the instrument cluster. Refer to INSTRUMENT CLUSTER .
- Cannot be replaced separately
- Driver Side Knee Airbag
- with the Driver Knee Airbag Igniter -N295-
- Market-Specific Version
- Removing and Installing. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, DRIVER SIDE .
