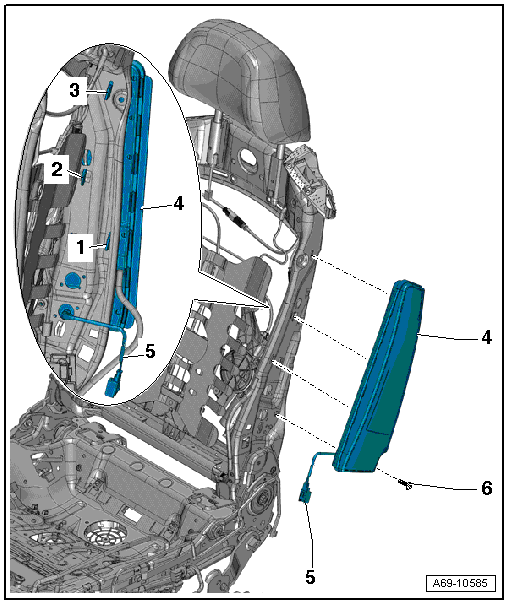

Overview - Front Thorax Airbag
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Hook
- For securing the thorax airbag to the backrest frame
- Center Hook
- For securing the thorax airbag to the backrest frame
- Upper Hook
- For securing the thorax airbag to the backrest frame
- Front Thorax Airbag
- Driver side: with Driver Thorax Airbag Igniter -N199-
- Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-WARNING:
Follow all safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Removing and Installing. Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Wiring Harness
- Front Driver Thorax Airbag Igniter -N199- or Front Passenger Thorax Airbag Igniter -N200- continuous to the connector station.
- Bolt
- 8 Nm
- Replace
- The threaded hole for the bolt must always be cleaned (for example, with a thread tap)
- Install with locking compound. Refer to the Parts Information for the locking compound.
