Overview - Front Seat, Comfort Seat

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview references the driver seat. The passenger seat is similar and the components are installed in a mirror image.

For clarity, the carpet and the four-way lumbar support are not shown in the illustration.

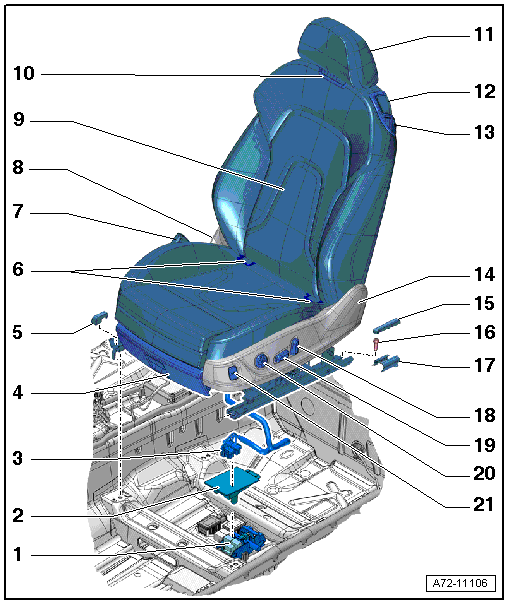

Fig 1: Comfort Front Seat Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Connector Station
- Connector Assignment. Refer to CONNECTOR STATION CONNECTORS .
Cover
- For the connector station
- Removing and Installing. Refer to CONNECTORS, DISCONNECTING AND CONNECTING .
Connector
- With a corrugated tube for the modular wiring routing
- Overview - Modular Wiring Routing. Refer to OVERVIEW - MODULAR WIRING ROUTING .
- Modular wiring routing with corrugated tube on front seat. Refer to MODULAR WIRE ROUTING WITH CORRUGATED TUBE ON FRONT SEAT .
Storage Compartment
- Equipped on some models
- Removing and Installing. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Spindle Cover
- Quantity: 2
- Clipped to the seat forward/back adjustment spindle
- Removing and Installing. Refer to SEAT RAIL SPINDLE COVER, REMOVING AND INSTALLING .
LATCH Child Seat Anchor
- Equipped on some models
- for the front passenger seat only
- Removing and Installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Checking after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Tunnel-Side Trim
- Removing and Installing. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, SUPER SPORT SEAT .
Power Comfort Front Seat
- Removing and Installing. Refer to POWER FRONT SEAT, REMOVING AND INSTALLING .
  Equipped on some models:
  - Seat and backrest heating
Neck Heating
- Driver side: Left Neck Heating Fan -V450-
- Front passenger side: Right Neck Heating Fan -V451-
- Removing and Installing. Refer to LEFT AND RIGHT NECK HEATING FAN .
Headrest
- Power
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, POWER HEADREST .
Entry Assistance
- Removing and Installing. Refer to ENTRY ASSISTANCE HANDLE WITH BRACKET, REMOVING AND INSTALLING .
Button
- For entry assistance
- Removing and Installing. Refer to ENTRY ASSISTANCE BUTTON, REMOVING AND INSTALLING .
Sill-Side Trim
- Removing and Installing. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING, POWER STANDARD SEAT, WITH OR WITHOUT MEMORY FUNCTION .
Cap
- Only at the back of the seat rail, sill side
- Removing and Installing. Refer to SEAT RAIL CAP, REMOVING AND INSTALLING .
Bolts
- 50 Nm
- Quantity: 4
Cover
- For the seat rail
- Quantity: 4
- Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, SUPER SPORT SEAT .
Actuator
- For backrest and headrest adjustment
- Actuator, Removing and Installing. Refer to BACKREST AND HEADREST ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Control Head, Removing and Installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .
Actuator
- For seat adjustment
- Actuator, Removing and Installing. Refer to SEAT ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Control Head, Removing and Installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .
Actuator
- For the lumbar support
- Lumbar Support Adjustment Switch, Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, COMFORT SEAT .
- Four-Way Lumbar Support, Removing and Installing. Refer to LUMBAR SUPPORT, REMOVING AND INSTALLING .
Neck Heating Switch
- Driver side: Left Neck Heating Switch -E678-
- Front passenger side: Right Neck Heating Switch -E679-
- Removing and Installing. Refer to LEFT/RIGHT NECK HEATING SWITCH .
