Overview - Bumper Cover, AUDI RS5: Notes

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

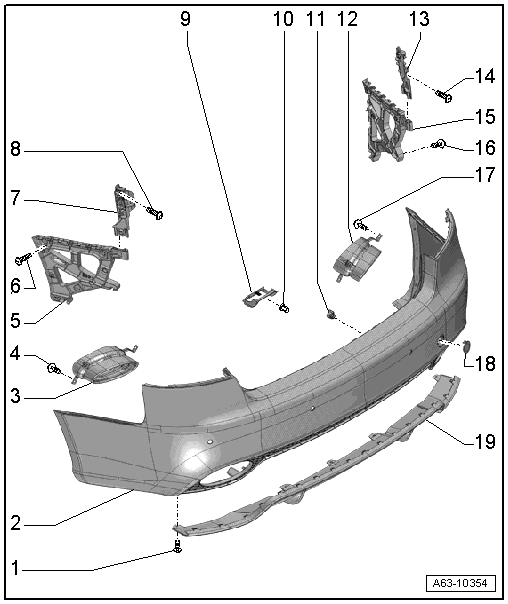

Fig 1: Exploded View Of Bumper Cover, Audi Rs5
GWWA63-10354Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 2 Nm
    • Quantity: 5
  2. Rear Bumper Cover
  3. Trim for the Left Tail Pipe
  4. Bolt
    • 2 Nm
    • Quantity: 4
  5. Left Side Mount
  6. Bolt
  7. Bumper Cover Locking Mechanism
    • Adjusting bolt tightening specification: 3 Nm
    • Removing and installing. Refer to Installing .
  8. Bolt
  9. Center Guide
    • For the bumper cover
    • Removing and installing. Refer to Installing .
  10. Nut
    • 1.5 Nm
    • Quantity: 2
  11. Rear Parking Aid Sensor
  12. Trim for the Right Tail Pipe
  13. Bumper Cover Locking Mechanism
    • Adjusting bolt tightening specification: 3 Nm
    • Removing and installing. Refer to Installing .
  14. Bolt
  15. Right Side Mount
  16. Bolt
  17. Bolt
    • 2 Nm
    • Quantity: 4
  18. Cap
    • For the towing eye
  19. Diffuser Trim
