Spoiler Upper Section

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Remove the air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS5 .

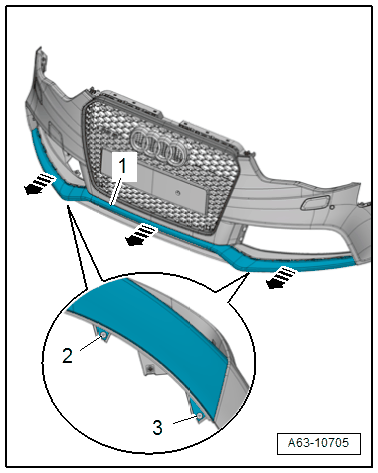

-- Remove the bolts -2 and 3-.

-- Remove the upper section of the spoiler -1- on the outside starting at the bumper -arrows-.

NOTE:

If the upper section of the spoiler cannot be removed, release the retaining tabs from the rear side.

Installing

Tightening specifications. Refer to OVERVIEW - BUMPER COVER, AUDI RS5 .

Install in reverse order of removal. Note the following:

-- During installing, the retaining tabs must engage completely in the bumper.

-- Install air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS5 .
