Overview - Bumper Cover, AUDI RS5

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

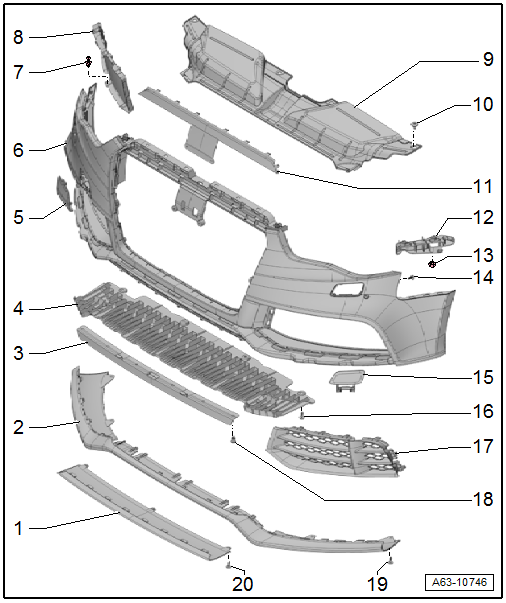

Fig 1: Exploded View Of Bumper Cover, Audi Rs5

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Spoiler Lower Section
- Removing and installing. Refer to Installing .
Spoiler Upper Section
- Removing and installing. Refer to Installing .
Spoiler Lip
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING, AUDI RS5 .
Bumper Cover End Plate
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING, EXCEPT AUDI RS5 .
Cover
- For the towing hook
Front Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .
Expanding Clip
Right Cover
- Equipment levels
- Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS5 .
Lock Carrier Cover
- Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Expanding Clip
- Quantity: 4
Cover
- for the reinforcement brace
Front Bumper Cover Mount
- Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
Nut
- 4 Nm
- Quantity: 4
Bolt
- 4 Nm
- Quantity: 4
Cover
- For headlamp washer system spray nozzle
Bolt
- 5 Nm
- Quantity: 4
Air Intake Grille
- Removing and installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS5 .
Expanding Rivet
- Quantity: 4
Bolt
- 2 Nm
- Quantity: 2
Bolt
- 2 Nm
- Quantity: 3
