Spoiler Lower Section
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Removing
-- Remove upper section of spoiler. Refer to Installing .
-- Remove spoiler lip. Refer to ATTACHMENTS, REMOVING AND INSTALLING, AUDI RS5 .

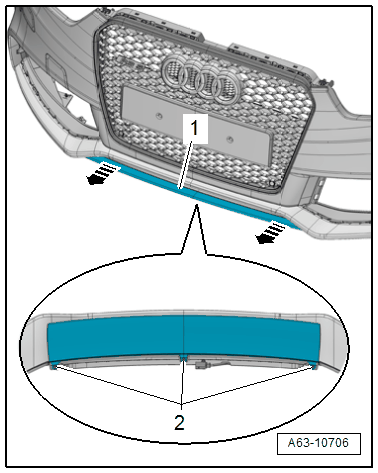

-- Remove the bolts -2-.
-- Remove the lower section of the spoiler -1- on the outside starting at the bumper -arrows-.
Installing
- Tightening specifications. Refer to OVERVIEW - BUMPER COVER, AUDI RS5 .
Install in reverse order of removal. Note the following:
-- During installing, the retaining tabs must engage completely in the bumper.
-- Install the spoiler lip. Refer to ATTACHMENTS, REMOVING AND INSTALLING, AUDI RS5 .
-- Install upper section of spoiler. Refer to Installing .
