Overview - Front Door Trim Panel
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

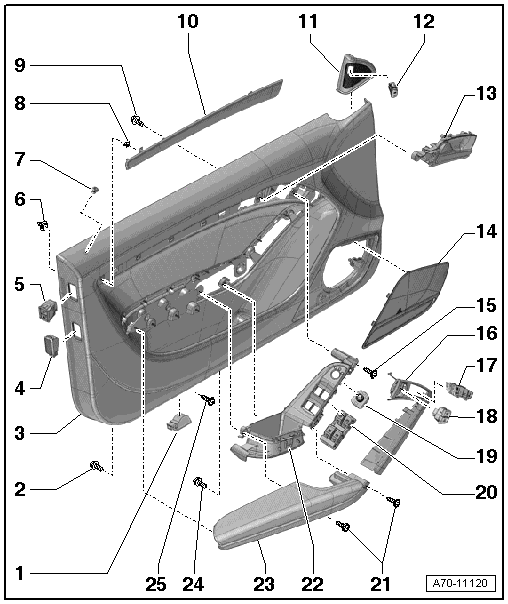

The illustration shows the driver side door trim panel.
- Entry Lamp
- Removing and installing. Refer to LEFT/RIGHT FRONT ENTRY LAMP -W31- / -W32-, REMOVING AND INSTALLING .
- Bolt
- 1.2 Nm
- For the armrest
- Quantity: 9
- Door Trim Panel
- Removing and Installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- When replacing the door trim panel, a hole for the sleeve -7- must be made in the new panel using the old panel as a template.
- Active/Passive Rear Reflector
- Equipped on some models
- Interior Monitoring Switch -E183- /Alarm System Deactivation Switch -E217-
- Removing and Installing. Refer to INTERIOR MONITORING SWITCH -E183- /ALARM SYSTEM DEACTIVATION SWITCH -E217-, REMOVING AND INSTALLING .
- Clip
- With seal
- For door trim panel
- Quantity: 8WARNING:
- For proper crash sensor (pressure sensor) function, make sure the door is properly sealed.
- The door trim panel clips seal the system. Replace the door trim panel clips if necessary.
- Follow the safety precautions when working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Sleeve
- Driver door only
- For Central Locking -SAFE- Indicator Lamp -K133-
- Central Locking -Safe- Indicator Lamp -K133-, Removing and Installing. Refer to CENTRAL LOCKING -SAFE- INDICATOR LAMP -K133-, REMOVING AND INSTALLING .
- When replacing the door trim panel, a hole for the sleeve must be made in the new panel by using the old panel as a model
- Clip
- Quantity: 4
- Press into the door trim panel
- Bolt
- 1.2 Nm
- For the interior door mechanism
- Quantity: 4
- Decorative Trim
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
- Speaker Trim
- For the treble speaker
- Removing and Installing. Refer to TREBLE SPEAKER TRIM, REMOVING AND INSTALLING .
- Lane Change Assistance Button -E530-
- Removing and Installing. Refer to LANE CHANGE ASSISTANCE BUTTON -E530-, REMOVING AND INSTALLING .
- Interior Door Mechanism
- Removing and Installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
- Speaker Trim
- For midrange speaker
- Removing and Installing. Refer to MIDRANGE SPEAKER TRIM, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- For door trim panel
- Button Trim
- There are different versions
- For the Driver Interior Locking Button -E308- /Driver Memory Seat Control Head -E97-
- Removing and Installing. Refer to BUTTON TRIM, REMOVING AND INSTALLING .
- Driver Memory Seat Control Head -E97-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER MEMORY SEAT CONTROL HEAD -E97- / -E277-, REMOVING AND INSTALLING .
- Driver Interior Locking Button -E308-
- Removing and Installing. Refer to OVERVIEW - FRONT DOOR CONTROLS .
- Mirror Adjusting Switch -E43- or Folding Mirror Adjustment Switch -E168-
- Removing and installing. Refer to MIRROR ADJUSTING SWITCH -E43- /FOLDING MIRROR ADJUSTMENT SWITCH -E168-, REMOVING AND INSTALLING .
- Power Window Control Head in Driver Door -E512-
- Front Passenger Door Window Regulator Switch -E107-
- Removing and Installing. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -E512-, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- For door trim panel
- Pull Handle
- With switch mount
- Removing and Installing. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .
- Armrest
- Removing and Installing. Refer to FRONT ARMREST, REMOVING AND INSTALLING .
- Bolt
- 1.2 Nm
- For the pull handle
- Quantity: 6
- Bolt
- 2.5 Nm
- For door trim panel
