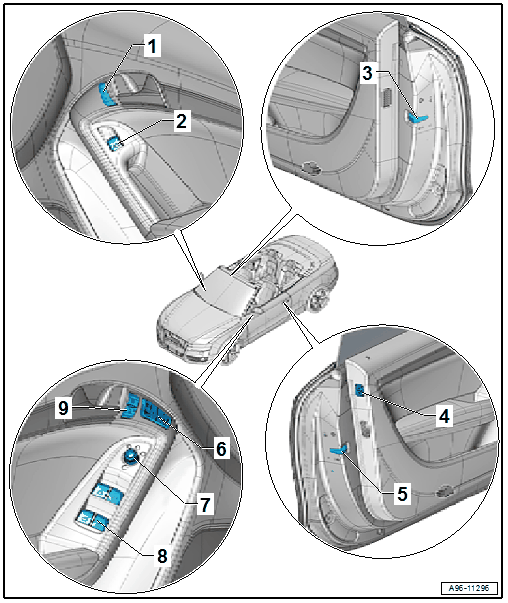

Overview - Front Door Controls
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Interior Locking Switch -E198-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER INTERIOR LOCKING SWITCH -E150- / -E198-, REMOVING AND INSTALLING .
- Front Passenger Door Window Regulator Switch -E107-
- Removing and installing. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR/FRONT PASSENGER DOOR WINDOW REGULATOR SWITCH -E512- / -E107-, REMOVING AND INSTALLING .
- Front Passenger Door Contact Switch -F3-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replacing the door lock. Refer to DOOR .
- Interior Monitoring Switch -E183- /Interior Monitoring Deactivation Switch -E217-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Driver Door Contact Switch -F2-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replacing the door lock. Refer to DOOR .
- Driver Memory Seat Control Head -E97-
- Removing and installing. Refer to Driver Memory Seat Control Head -E97-, REMOVING AND INSTALLING .
- Mirror Adjusting Switch -E43- or Folding Mirror Adjustment Switch -E168-
- Removing and installing. Refer to Mirror Adjusting Switch -E43- /Folding Mirror Adjustment Switch -E168-, REMOVING AND INSTALLING .
- Power Window Control Head In Driver Door -E512-
- With Left Front Window Regulator Switch -E40-, Right Front Power Window Switch in Driver Door -E81- Left Rear Window Regulator Switch in Driver Door -E53- and Right Rear Window Regulator Switch in Driver Door -E55-
- Window regulator switch, removing and installing. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR/FRONT PASSENGER DOOR WINDOW REGULATOR SWITCH -E512- / -E107-, REMOVING AND INSTALLING .
- Driver Interior Locking Switch -E150-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER INTERIOR LOCKING SWITCH -E150- / -E198-, REMOVING AND INSTALLING .
