Overview - Halogen Headlamps, Through 10/2008: Notes

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Headlamps Must Be Adjusted After Performing Measures That Could Influence Headlamp Adjustment. Refer to HALOGEN HEADLAMP, ADJUSTING .

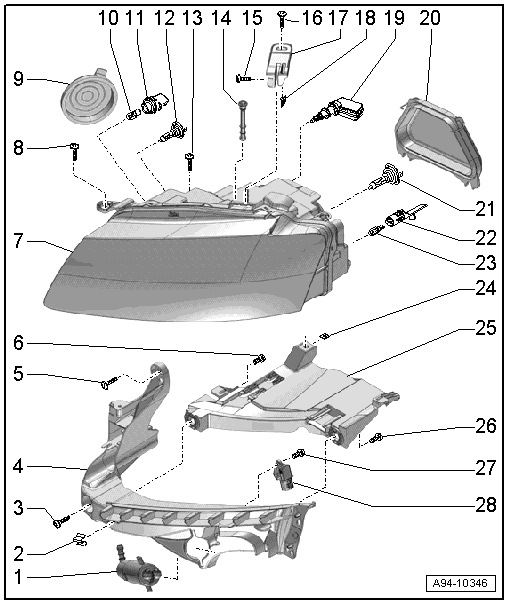

Fig 1: Exploded View Of Halogen Headlamps Components, Through 10.08

Courtesy of AUDI OF AMERICA, LLC

Headlamp Washer System Spray Nozzle
Mount
- For headlamp washer system washer fluid line
Screw
- Tightening Specification. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT,
Bracket
- Overview. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT, .
Screw
- Tightening Specification. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT,
Screw
- Tightening Specification. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT,
Headlamp Housing
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, Through MY 2012 .
Screw
- 4.5 Nm
Housing Cover
- For The Front Turn Signal And High Beam/Daytime Running Lamp
Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- 12 V, 24 W
- Bulb, Replacing. Refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, THROUGH 10/2008 .
Bulb Socket
- For the front turn signal lamp
Daytime Running Lamps/High Beam Headlamp
- Left High Beam Headlamp Bulb -M30-
- Right High Beam Headlamp Bulb -M32-
- Left Daytime Running Lamp Bulb -L174-
- Right Daytime Running Lamp Bulb -L175-
- Daytime Running Lamp Dimmed To 70%
- 12 V, 55 W (H7)
- Bulb, Replacing. Refer to LEFT/RIGHT HIGH BEAM HEADLAMP BULB -M30- / -M32-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, THROUGH 10/2008 .
Screw
- 4.5 Nm
Adjusting Screw
- For headlamp height adjustment
Screw
- 4.5 Nm
Screw
- 4.5 Nm
Headlamp Housing Bracket
Spring Nut
Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Not for USA Vehicles
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, THROUGH 10/2008 .
Housing Cover
- for the low beam headlamp/parking lamp/side marker lamp
Low Beam Headlamp Bulb
- Left Low Beam Headlamp Bulb -M29-
- Right Low Beam Headlamp Bulb -M31-
- 12 V, 55 W (H7)
- Bulb, Replacing. Refer to LEFT/RIGHT LOW BEAM HEADLAMP BULB -M29- / -M31-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, THROUGH 10/2008 .
Bulb Socket
- For the parking lamp/front side marker lamp bulb
Parking Lamp/Front Side Marker Lamp Bulb
- Left Position Lamp Bulb -M1-
- Right Position Lamp Bulb -M3-
- Left Front Side Marker Lamp Bulb -M33-
- Right Front Side Marker Lamp Bulb -M34-
- 12 V, 5 W
- Bulb, Replacing. Refer to LEFT/RIGHT POSITION LAMP BULB -M1- / -M3-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, THROUGH 10/2008 .
Spring Nut
Mount
- Overview. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT, .
Screw
- Tightening Specification. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT,
Screw
- Tightening Specification. Refer to COMPONENT LOCATION OVERVIEW - AIRBAG CRASH SENSORS .
Front Airbag Crash Sensor
- Removing And Installing. Refer To DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING / DRIVER FRONT AIRBAG CRASH SENSOR -G283-, REMOVING AND INSTALLING .
