Left/Right High Beam Headlamp Bulb -M30- / -M32-, Removing And Installing, Halogen Headlamps From, My 2013: Removing
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch to position "0".
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Do not operate the headlamp flasher.
-- On The Right: Remove The Air Filter Housing. Refer To AIR FILTER HOUSING, LOWER SECTION [CALA] , AIR FILTER HOUSING, LOWER SECTION [CAKA, CCBA, CMUA, CGWC, CGXC, CHMB, CTUB] , AIR FILTER HOUSING [CFSA] , AIR FILTER HOUSING [CAEB, CPMA] , AIR FILTER HOUSING, REMOVING AND INSTALLING [CAUA] .
-- Turn the housing cover -1- counter-clockwise -arrow- and remove it from the headlamp housing.

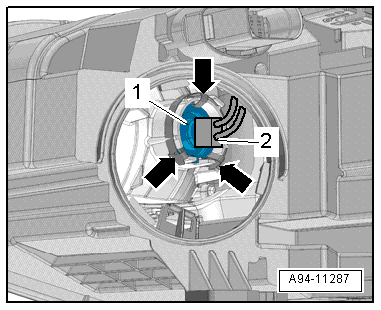

-- Remove the bulb -1- from the spring clips -arrows-.
-- Disconnect the connector -2- from the bulb.
