LEFT/RIGHT HID HEADLAMP BULB -L13- / -L14-, REMOVING AND INSTALLING, HID HEADLAMPS From MY 2013: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Do not operate the headlamp flasher.

-- Audi A5 on the right: remove the air filter housing. Refer to AIR FILTER HOUSING, LOWER SECTION [CALA] , AIR FILTER HOUSING, LOWER SECTION [CAKA, CCBA, CMUA, CGWC, CGXC, CHMB, CTUB] , AIR FILTER HOUSING [CFSA] , AIR FILTER HOUSING [CAEB, CPMA] , AIR FILTER HOUSING, REMOVING AND INSTALLING [CAUA] .

-- Audi RS 5 on the right side: Disconnect the connector -3- on the Engine Coolant Level Warning Switch -F66-.

Fig 1: Identifying Connector -3-, Clip -1-, Clamp -4- & Nut -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and then remove the coolant expansion tank and lay it aside with the coolant hoses -1 and 4- connected.

-- Remove the housing cover -1- from the headlamp housing -arrow-.

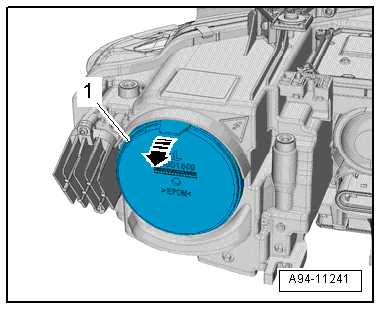

Fig 2: Removing Housing Cover -1- From Headlamp Housing -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the HID bulb -2- in the direction of the -arrow- and remove it from the housing.

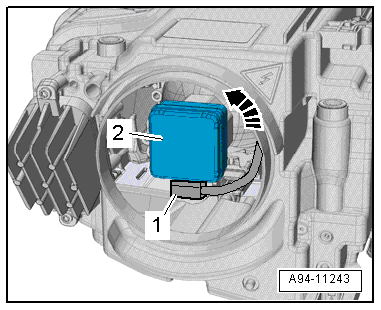

Fig 3: Rotating HID Bulb -2- In -Direction Of Arrow- & Remove It From Housing

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
