SUBFRAME Mount, Adjusting: Procedure
-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .
-- Slightly tension the engine/transmission assembly using the :10-222A/11 do not lift.
-- Remove the battery tray -1-. Refer to BATTERY .
-- Remove and replace the bolts -arrows- for the engine mount one after the other (if this was not already done when the engine was installed).
-- Install the bolts loosely.
-- Slide engine/transmission assembly with a pry bar until the following dimensions are set:
- The clearance between the engine support -2- and the engine mount -1- must be at least -a- = 10 mm.
- The casting edge on the engine support must be parallel to the support arm.
- Dimension -b- = Dimension -b-.
- Distance of at least -a- = 10 mm can also be checked with corresponding round stock.
-- Tighten the bolts on the engine mount.

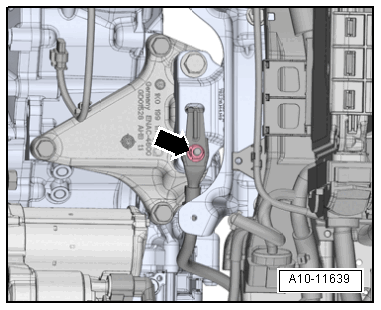

-- Remove the nut -arrow- and free up the ground wire.
- The illustration shows a transmission mount with two threaded connections.
-- Remove the replace the bolts -arrows- for the transmission mount -1- one after the other on the (if this was not already done when the engine was installed).
-- Install the bolts loosely.

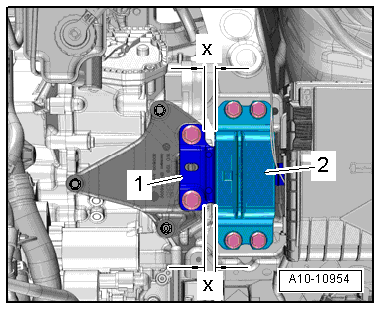

-- The edges on the support arm -1- and transmission mount -2- are parallel on the transmission side.
- Dimension -x- = dimension -x-.
Install in reverse order of removal.
