Engine, Supporting In Installed Position
Special tools and workshop equipment required
- Engine Support Bridge:10-222A
- Engine Support Bridge - Engine Support 4:10-222A/4
- Engine Support Bridge - Spindle:10-222A/11
- Engine Support:10-222A/31A
- :T40091/3 from the Engine Support - Basic Set:T40091
- :T40093/3-5 from the Engine Support Supplement Kit:T40093A
- :T40150/4 from the Engine Support Bracket:T40150
Tool Development
-- If the :10-222A/4 does not have the indicated holes -arrow- shown they must be added.
- Dimension -a- = 225 mm.
- Hole diameter= 12.5 mm
PROCEDURE
-- Remove windshield wiper arms -arrows-. Refer to WINDSHIELD WIPER SYSTEM .
-- Remove the plenum chamber cover -5-. Refer to BULKHEAD .
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

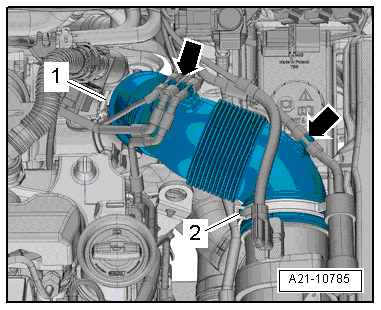

-- Expose the vacuum hoses -arrows-.
-- Loosen the clamps -1 and 2- and remove the air guide pipe.
-- Remove caps above the front suspension strut bolted connections.
-- Place the :10-222A/31-1 and :10-222A/31-2 on the suspension strut mounts.
- The ribs -arrow- faces the direction of travel.
-- Position the :10-222A/4 with the :T40091/3 as shown in the illustration.

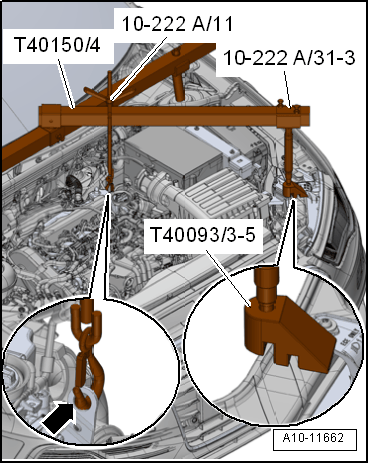

-- Install the additional tools on the left in the engine compartment as illustrated.
-- Attach the left :10-222A/11 carabiner hook to the engine lifting eye -arrow-.
ASSEMBLING
Assembly is performed in the reverse order of disassembly, noting the following:
-- Install the plenum chamber cover. Refer to BULKHEAD .
-- Install the windshield wiper arms. Refer to WINDSHIELD WIPER SYSTEM .
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
TIGHTENING SPECIFICATIONS
- Battery assembly overview. Refer to BATTERY .
