Overview - Cylinder Block, Belt Pulley Side, Version 2: Notes

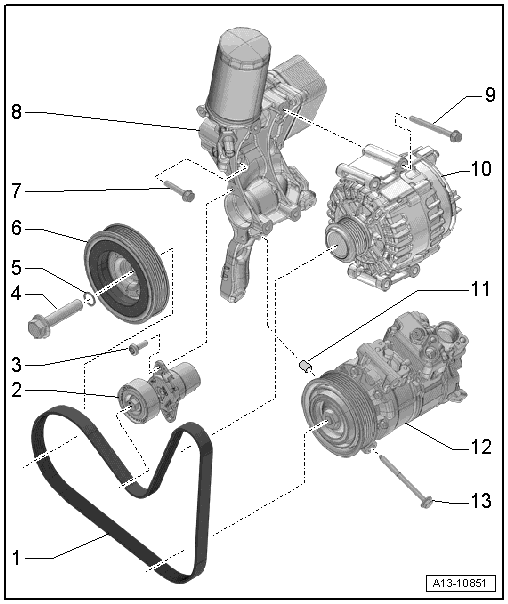

Fig 1: Cylinder Block, Belt Pulley Side Exploded View (Version 2)

Courtesy of AUDI OF AMERICA, LLC

1. Ribbed Belt
   • Check for wear
   • Before removing, mark the running direction using chalk or a felt-tip pen. Reversing the running direction on a used belt can destroy it
   • Do not kink
   • When installing, make sure it is seated correctly on the belt pulleys
   • Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING
   • Ribbed belt routing. Refer to RIBBED BELT ROUTING  and/or Figure
2. Ribbed Belt Tensioner
   • To release the tension on the ribbed belt, pivot using an open end wrench.
   • Secure using the Locking Pin - T10060A-
   • Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING
3. Bolt
   • 40 Nm
4. Bolt
   • 150 Nm + 90°
   • Always replace after removing.
   • Coat the O-ring with engine oil
5. O-ring
   • Not a replacement part; supplied with the bolt
6. Vibration Damper
   • With the ribbed belt pulley
   • Removing and installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING
7. Bolt
   • Tightening Specifications and Sequence. Refer to SUB-ASSEMBLY BRACKET, VERSION 2 - TIGHTENING SPECIFICATIONS AND SEQUENCE
8. Sub-Assembly Bracket
   • With oil filter and engine oil cooler
   • Removing and installing the sub-assembly bracket. (SUB-ASSEMBLY BRACKET, VERSION 2 - TIGHTENING SPECIFICATIONS AND SEQUENCE )
   • Removing and installing the engine oil cooler. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING
9. Seal
   • Always replace after removing.
10. Bolt
    • Tightening Specification. Refer to OVERVIEW - GENERATOR
11. Generator
    • Removing and installing. Refer to GENERATOR, REMOVING AND INSTALLING
12. A/C Compressor
    • Do not remove or disconnect the refrigerant lines
    • Removing and installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING
13. Alignment Sleeve
    • For the A/C compressor
14. Bolt
    • Tightening Specification. Refer to TIGHTENING SPECIFICATIONS
