Overview - Instrument Panel

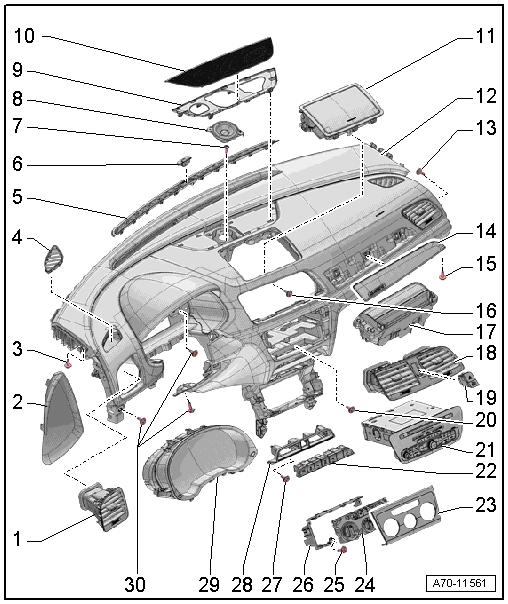

Fig 1: Instrument Panel Exploded View

Courtesy of AUDI OF AMERICA, LLC

Side Instrument Panel Vent
- Removing and installing. Refer to SIDE INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- When sliding it into the installation opening, make sure the air duct engages correctly.
- Press it into the installation opening as far as the stop.
Side Cover
- For the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
- Press on until it engages audibly
Bolt
- 3 Nm
Side Defroster Vent
- Removing and installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
- Press on it until it locks
Defroster Vent in the Center
- Removing and installing. Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING .
- Press on it until it locks
Sunlight Photo Sensor -G107-
- Removing and installing. Refer to Sunlight Photo Sensor -G107-, Removing And Installing .
Bolt
- 3 Nm
Center Speaker -R208-
- Equipment levels
- Removing and installing. Refer to Sound System .
Mount
- For the speaker trim
- Removing and installing. Refer to SPEAKER TRIM MOUNT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press on it until it locks
Center Speaker Trim
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- First, insert in the front of the instrument panel and press on it until it engages audibly.
Front Information Display Control Head -J685- /Storage Compartment
- Equipment levels
- Removing and installing the front information display control head -J685-. Refer to Front Information Display Control Head -J685- .
- Removing and installing the storage compartment. Refer to INSTRUMENT PANEL STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Insert in the front of the instrument panel and press on it until it engages audibly.
Instrument Panel
WARNING:
- Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow the allocation of the airbag to the instrument panel. Refer to the Parts Information.
- Removing and installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Front Passenger Side Trim
- For the instrument panel
- Clipped in the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Bolt
- 3 Nm
Bolt
- 3 Nm
Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
  WARNING:
  - Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
  - Follow the allocation of the airbag to the instrument panel. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Removing and installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Center Instrument Panel Vent
- Removing and installing. Refer to CENTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- When sliding it into the installation opening, make sure the air duct engages correctly.
- Press it into the installation opening as far as the stop.
Switch Unit
- With Front Passenger Airbag -Disabled- Indicator Lamp -K145-, Emergency Flasher Button -E229-
- Removing and Installing. Refer to Controls .
Bolt
- 3 Nm
Radio -R- /Navigation System
- Equipment levels
- Removing and installing. Refer to RADIO, REMOVING AND INSTALLING .
Lower Button Unit
- Removing and Installing. Refer to Controls .
Trim
- Only for A/C Control Module -J301-
- Removing and installing. Refer to Display Control Head, Removing And Installing .
- Clipped on the A/C Control Module -J301-
A/C Control Module - J301- /Climatronic Control Module - J255-
- Removing and installing. Refer to Display Control Head, Removing And Installing .
Bolt
- 1.5 Nm
- Quantity: 2
Frame
- Only for A/C Control Module -J301-
- Removing and installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 2
Mount
- For the lower button unit
- Removing and installing. Refer to LOWER BUTTON UNIT MOUNT, REMOVING AND INSTALLING .
Instrument Cluster
- Removing and installing. Refer to Instrument Cluster With Instrument Cluster Control Module -J285-, Removing And Installing .
Bolts
- 3 Nm
