Overview - Front Passenger Airbag

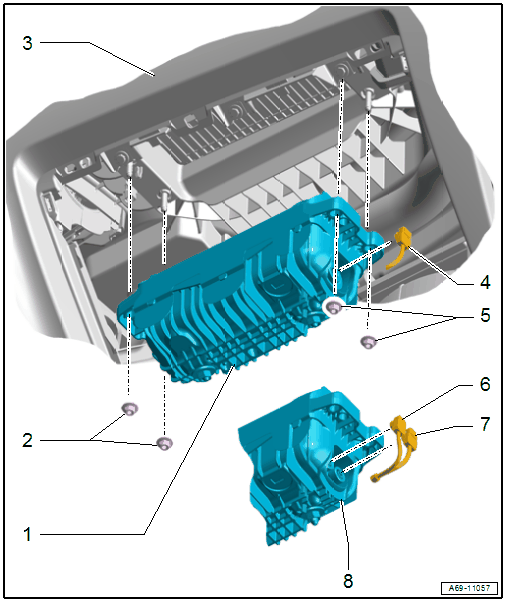

Fig 1: Front Passenger Airbag Exploded View

Courtesy of AUDI OF AMERICA, LLC

Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
  WARNING:
  - Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
  - Follow the allocation of the airbag unit to the instrument panel. Refer to the parts information.
- Removing and installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Nut
- 9 Nm
- Replace
Instrument Panel
- Replace the instrument panel after an airbag has deployed. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Connector
- For Front Passenger Airbag Igniter 1 -N131-
Nut
- 9 Nm
- Replace
Connector
- USA and Canada market-specific for Front Passenger Airbag Igniter 2 -N132-
Connector
- USA and Canada market-specific for Front Passenger Airbag Igniter 1 -N131-
Front Passenger Airbag
- USA and Canada market-specific with Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Igniter 2 -N132-
  WARNING:
  - Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
  - Follow the allocation of the airbag unit to the instrument panel. Refer to the parts information.
- Removing and installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
