Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the RH and LH sides.
The procedure described below is for the LH side.

REMOVE FRONT DOOR SCUFF PLATE . Refer to REMOVAL [08/2013 - ] - Step 4
REMOVE REAR DOOR SCUFF PLATE . Refer to REMOVAL [08/2013 - ] - Step 8
REMOVE CENTER PILLAR LOWER GARNISH . Refer to REMOVAL [08/2013 - ] - Step 9
REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
1. Disconnect the connector.
2. Using a T30 "TORX" socket wrench, remove the screw and front door courtesy light switch assembly.

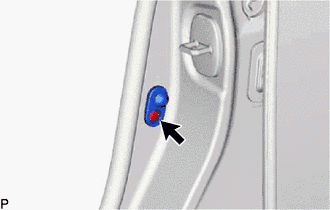

  Fig 1: Identifying Front Door Courtesy Light Switch Assembly
