Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SEAT ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE REAR DOOR SCUFF PLATE LH . Refer to REMOVAL [08/2013 - ] - Step 8
REMOVE REAR DOOR SCUFF PLATE RH . Refer to REMOVAL [08/2013 - ] - Step 3
REMOVE REAR SEAT SIDE GARNISH LH . Refer to REMOVAL [08/2013 - ] - Step 18
REMOVE REAR SEAT SIDE GARNISH RH . Refer to REMOVAL [08/2013 - ] - Step 5
REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 2
DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 9
DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 6
DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH . Refer to REMOVAL [08/2013 - ] - Step 7
REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 19
REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH . Refer to REMOVAL [08/2013 - ] - Step 7
REMOVE CENTER STOP LIGHT SET (w/o Rear Sunshade) . Refer to REMOVAL [08/2013 - ] - Step 1
REMOVE REAR SEAT SHOULDER BELT HOLE COVER . Refer to REMOVAL [08/2013 - ] - Step 13
REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER . Refer to REMOVAL [08/2013 - ] - Step 14
REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) . Refer to REMOVAL [08/2013 - ] - Step 15
REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) . Refer to REMOVAL [08/2013 - ] - Step 16
REMOVE DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY
1. Remove the 2 bolts.

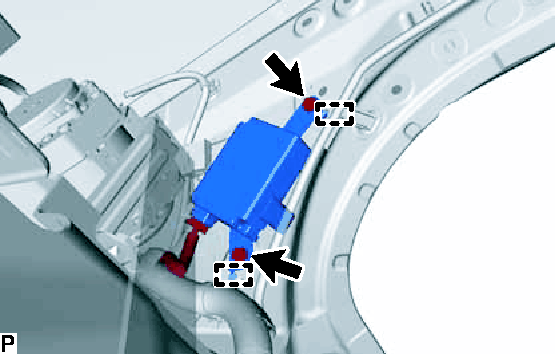

  Fig 1: Identifying Tire Pressure Warning ECU & Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 guides from the holes to remove the door control and tire pressure monitoring system receiver assembly.
3. Disconnect the connector from the door control and tire pressure monitoring system receiver assembly.
