Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work. Refer to PRECAUTION [08/2013 - ] .

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER  . Refer to REMOVAL [08/2013 - ] - Step 2
  3. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .

  4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL  . Refer to REMOVAL [08/2013 - ] - Step 14
  5. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 4 .

  6. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 5 .

  7. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 6 .

  8. REMOVE INSTRUMENT SIDE PANEL RH  . Refer to REMOVAL [08/2013 - ] - Step 35
  9. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 36
  10. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 9
  11. REMOVE INSTRUMENT PANEL BOX DOOR COVER  . Refer to REMOVAL [08/2013 - ] - Step 38
  12. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 39
  13. REMOVE ECU INTEGRATION BOX RH  . Refer to REMOVAL [08/2013 - ] - Step 13
  14. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Disconnect the 3 connectors.

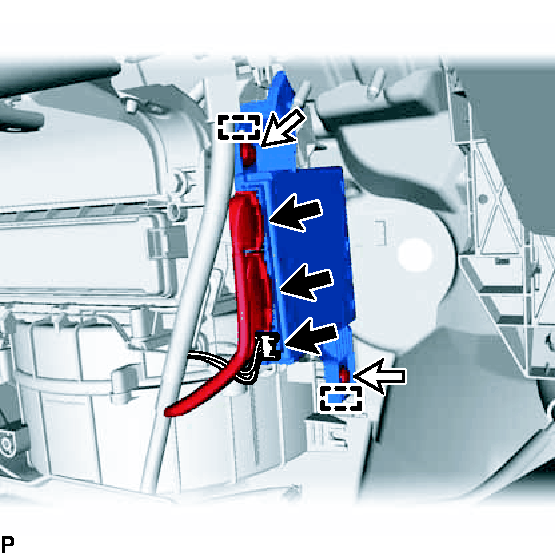

      Fig 1: Identifying Air Conditioning Amplifier Assembly
      GTY414673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Disengage the 2 guides and remove the air conditioning amplifier assembly.
