Removal [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 28
- REMOVE ACCESSORY METER ASSEMBLY (for Radio Receiver Type) . Refer to REMOVAL [08/2013 - ] - Step 2
- REMOVE MULTI-DISPLAY ASSEMBLY (except Radio Receiver Type) . Refer to REMOVAL [08/2013 - ] - Step 2
- REMOVE TELLTALE LIGHT ASSEMBLY

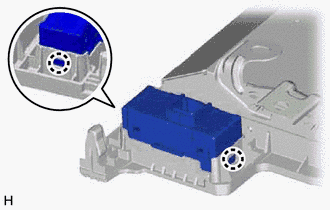

- Disengage the 2 claws to remove the telltale light assembly.
