Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 28
REMOVE ACCESSORY METER ASSEMBLY

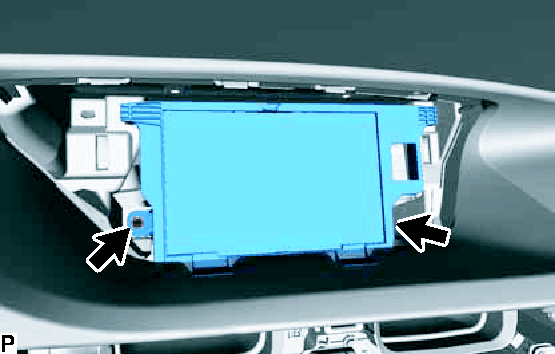

1. Remove the 2 screws.

  Fig 1: Locating Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

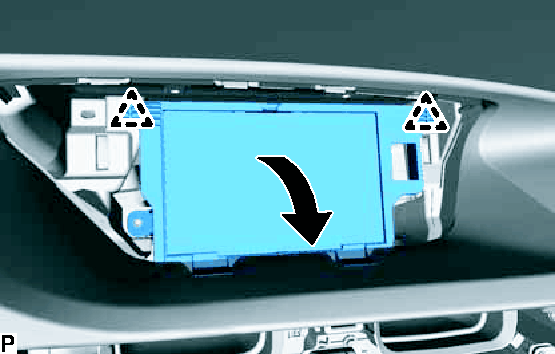

2. Pull the accessory meter assembly in the direction indicated by the arrow to disengage the 2 clips.

  Fig 2: Pulling Multi-Display Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the clamp.
4. Disconnect each connector and remove the accessory meter assembly.
