Overview - Fuel Filler Door Unit

Fig 1: Fuel Filler Door Overview

Courtesy of AUDI OF AMERICA, LLC

1. Emergency Release Cable
2. Fuel Filler Door Unlock Motor -V155-
   • Removing:

     -- The fuel filler door is removed.

     -- Pull the Comfort System Central Control Module -J393- into the luggage compartment and pull it forward.

     -- Remove the Fuel Filler Door Unlock Motor -V155- forward off the body flange and disconnect the electrical connector.

   • Installing:

     -- Slide the Fuel Filler Door Unlock Motor -V155- onto the flange and slide the emergency release into the luggage compartment.

3. Fuel Filler Door Cover
   • Removing. Refer to FUEL FILLER DOOR COVER, REMOVING AND INSTALLING .
4. Fuel Filler Door
   • Must be replaced after removing

     -- Remove the cover for the fuel filler door. Refer to FUEL FILLER DOOR COVER, REMOVING AND INSTALLING .

     -- Guide cable through opening in fuel filler door cup.

     -- Insert fuel filler door diagonally until catches on protruding flange engage in side panel.

     -- Bolt the door and the door release motor together using the bolt -4-.

5. Bolt
   • 1.7 Nm
6. Fuel Filler Door Insert
7. Drain Hose
   • Route it without kinking it

Replace the Fuel Filler Door

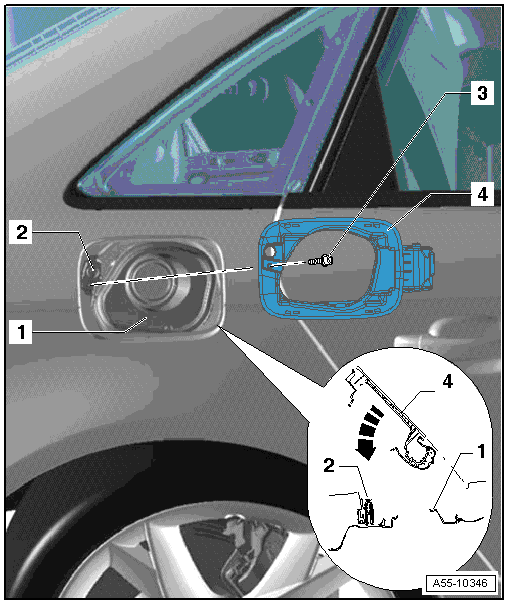

Fig 2: Replacing Fill Filler Door

Courtesy of AUDI OF AMERICA, LLC

1. Fuel Filler Door Cup
2. Fuel Filler Door Unlock Motor -V155-
3. Bolt
   • 1.7 Nm
4. Fuel Filler Door

   -- Removing. Refer to FUEL FILLER DOOR, REMOVING AND INSTALLING  - "Remove the Fuel Filler Door".
