Oil Pan Overview

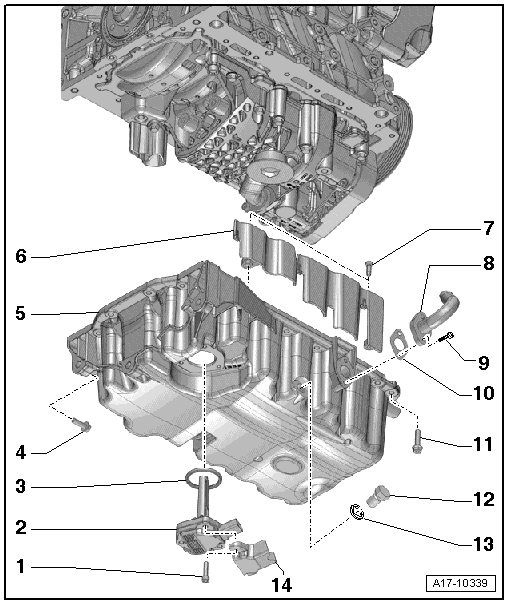

Fig 1: Identifying Oil Pan Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 9 Nm
2. Oil Level Thermal Sensor -G266-
   • Removing and installing, refer to Oil Level Thermal Sensor -G266-
3. Seal
   • Replace
4. Bolt
   • Tightening specification and sequence, refer to Fig 4
5. Oil Pan
   • Clean sealing surface before installing
   • Removing and installing, refer to OIL PAN
6. Oil Baffle
7. Bolt
   • 9 Nm
8. Oil Return Pipe
9. Bolt
   • Tightening specifications, refer to Bolt in: TURBOCHARGER OVERVIEW
10. Gasket
    • Replace
11. Bolt
    • Tightening specification and sequence, refer to Fig 2
12. Oil Drain Plug
    • 30 Nm
13. Seal
    • Replace
14. Cover

Fig 2: Identifying Oil Pan Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the oil pan bolts in three stages as follows:

-- Tighten the bolts from the oil pan to the cylinder block -1 to 20- in a diagonal sequence to 5 Nm.

-- Tighten the bolts from the oil pan to the transmission -arrows- to 40 Nm.

-- Tighten the bolts from the oil pan to the cylinder block -1 to 20- in a diagonal sequence to 15 Nm.

Fig 3: Identifying Oil Dipstick Guide Tube - Tightening Specifications

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the double bolt -arrow- to 6 Nm.

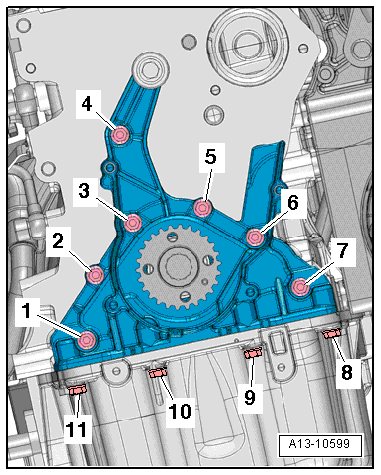

Fig 4: Identifying Ribbed Belt Pulley Side Sealing Flange - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC
