Oil Level Thermal Sensor -G266-

Removing

-- Drain engine oil. Refer to ENGINE OIL, DRAINING/EXTRACTING AND REMOVING AND INSTALLING FILTER

-- Disconnect the connector -5-.

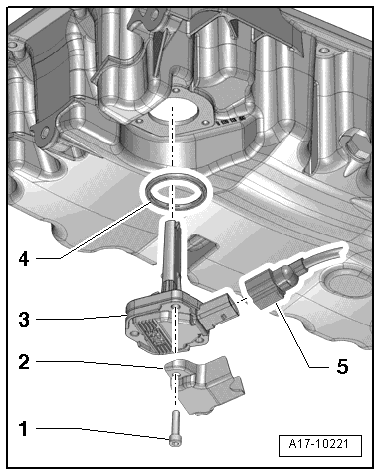

Fig 1: Identifying Oil Level Thermal Sensor -3- From Oil Pan And Remove It With Seal -4-, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the three bolts -1- and the cover -2-.

-- Remove the oil level thermal sensor -3- from the oil pan and remove it with the seal -4-.

Installing

• For the correct tightening specifications, refer to OIL PAN OVERVIEW .

Installation is done is reverse order, observe the following:

-- Fill the engine oil and check the oil level. Refer to MAINTENANCE PROCEDURES
