Turbocharger Recirculating Valve

WARNING: This page is about a different variant/trim than selected.

Removing

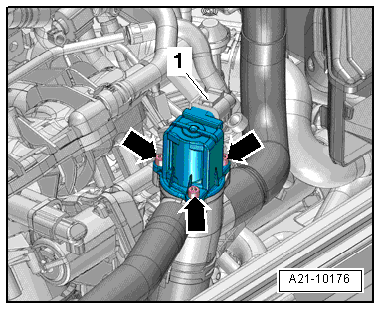

-- Disconnect the connector -1-.

Fig 1: Turbocharger Recirculating Valve (1 Of 2)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the turbocharger recirculation valve -N249-.

Installing

Installation is done is reverse order, observe the following:

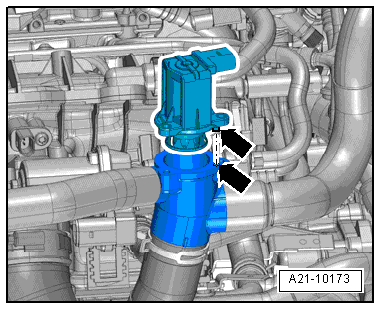

Installed position: The markings must align -arrows-.

Fig 2: Turbocharger Recirculating Valve (2 Of 2)
Courtesy of AUDI OF AMERICA, LLC
