Charge Air Cooler Overview
WARNING: This page is about a different variant/trim than selected.
NOTE:
The hose supports, air guide pipes and hoses must be free of oil and grease before installing.
Secure all hose connections with hose clamps appropriate for the model.
To mount the charge hoses on their connectors securely, spray the bolts on the used clamps with rust remover before installing.

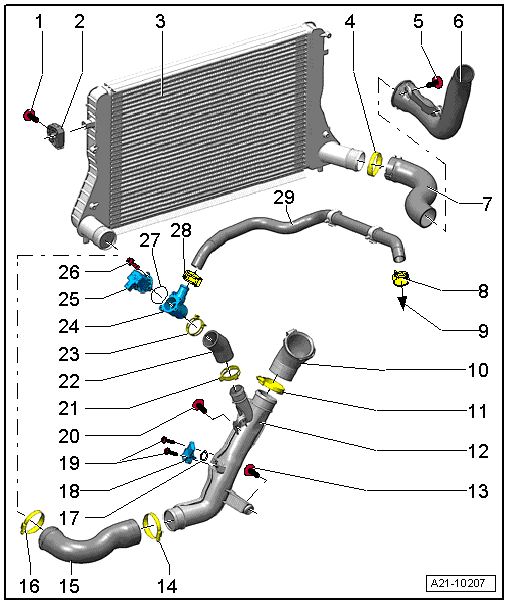

- Bolt
- 5 Nm
- Bearings
- For charge air cooler
- Charge Air Cooler
- Removing and installing, refer to CHARGE AIR COOLER
- Hose Clamp
- Bolt
- 10 Nm
- Air Guide Pipe
- Removing and installing, refer to AIR GUIDE PIPES AND HOSES WITH CONNECTOR COUPLING
- Air Guide Hose
- Removing and installing, refer to AIR GUIDE PIPES AND HOSES WITH CONNECTOR COUPLING
- Hose Clamp
- To the Air Guide Hose
- Air Guide Hose
- To throttle valve control module -J338-
- Hose Clamp
- Air Guide Pipe
- Bolt
- 10 Nm
- Hose Clamp
- Air Guide Hose
- Hose Clamp
- O-ring
- Replace
- Charge Air Pressure Sensor -G31-
- Removing and installing, refer to CHARGE AIR PRESSURE SENSOR
- Bolts
- 5 Nm
- Bolt or Nut
- 10 Nm
- Hose Clamp
- Hose
- Hose Clamp
- Housing
- Turbocharger Recirculating Valve -N249-
- Removing and installing, refer to TURBOCHARGER RECIRCULATING VALVE
- Bolt
- 7 Nm
- Quantity: 3
- O-ring
- Replace
- Hose Clamp
- Hose
