Vibration Damper

WARNING: This page is about a different variant/trim than selected.

Removing

-- Remove ribbed belt. Refer to RIBBED BELT .

-- Remove the front noise insulation -1-. Refer to Removal and Installation .

Fig 1: Identifying Front Noise Insulation -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right noise insulation -arrows-.

Fig 2: Identifying Right Drive Axle Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation frame -arrow- and the rear noise insulation. Refer to Removal and Installation .

Fig 3: Identifying Noise Insulation Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vibration damper bolts while counterholding it with an open end wrench.

Fig 4: Identifying Vibration Damper/Belt Pulley

Courtesy of AUDI OF AMERICA, LLC

Installing

Installation is done is reverse order, observe the following:

NOTE:

Replace the vibration damper bolts.

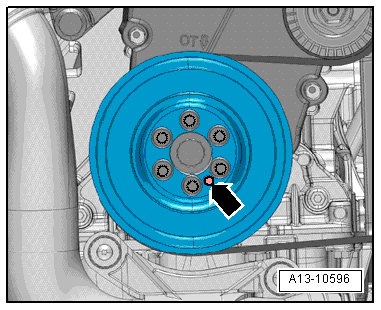

Only possible to install in one position: The vibration damper crankshaft hole -arrow- must be positioned over the protrusion on the toothed belt sprocket.

Fig 5: Identifying Vibration Damper Crankshaft Hole -Arrow- Positioned Over Protrusion On Toothed Belt Sprocket
Courtesy of AUDI OF AMERICA, LLC

-- Install the noise insulation frame and the noise insulation. Refer to Removal and Installation .

-- Install the ribbed belt. Refer to VIBRATION DAMPER .
