Intake Flap Motor And Intake Manifold Runner Position Sensor
For the installation location of the intake flap motor -V157-. Refer to INTAKE MANIFOLD ASSEMBLY OVERVIEW .
Special tools and workshop equipment required
- Commercial 1 / 4 ratchet
- Torx 30
Removing
-- Remove engine cover.
-- Disconnect vacuum lines -arrows-.
-- Remove bracket -arrow- for the harness.
-- Disconnect connectors attached to the wiring harness and move the cable harness to the side as needed.
-- Remove bracket for cable connector -arrows- from coolant pipe.
Open the nut with the left -arrow- just enough so that the bracket can moved to the side.
-- Carefully pry off linkage from Intake Flap Motor -V157- -4-.
-- Remove Intake Flap Motor -V157- -5-.
The illustration shows the intake manifold removed.
Installing
-- Installation is in reverse order.
- Tightening Specifications. Refer to INTAKE MANIFOLD ASSEMBLY OVERVIEW .
For installation location of the intake flap motor -V157-. Refer to INTAKE MANIFOLD ASSEMBLY OVERVIEW .
Special tools and workshop equipment required
- Commercial 1 / 4 ratchet
- Torx 30
Removing
-- Remove engine cover.
-- Disconnect vacuum lines -arrows-.

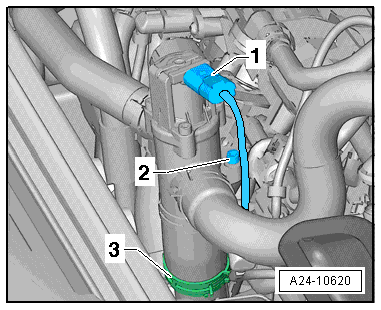

-- Disconnect connector on the turbocharger recirculating valve -N249- -1-.
-- Remove bolt -2-.
-- Open hose clamp -3- and remove the turbocharger recirculating valve -N249-.
Cover the opening on the intake hose.
-- Remove bracket -arrow- for the harness.
-- Disconnect the connectors attached to the wiring harness and move the cable harness to the side as needed.
-- Disconnect the cable connector bracket from the water pipe.
-- Carefully pry off linkage from Intake Flap Motor -V157- -4-.
-- Remove Intake Flap Motor -V157- -5-.
The illustration shows the intake manifold removed.
Installing
-- Installation is in reverse order.
- Tightening Specifications. Refer to INTAKE MANIFOLD ASSEMBLY OVERVIEW .
