Intake Manifold Assembly Overview

WARNING: This page is about a different variant/trim than selected.

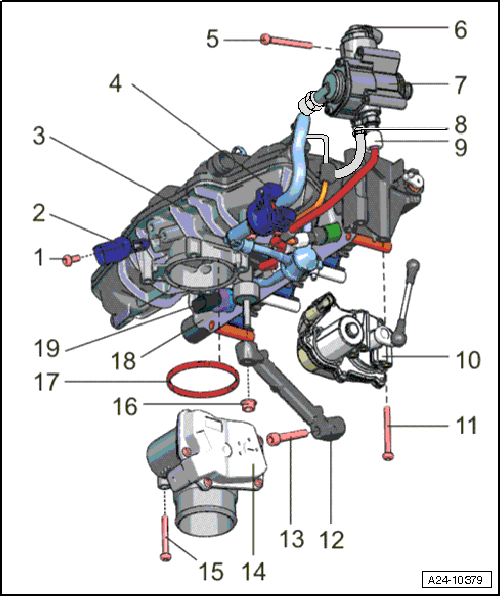

Fig 1: Identifying Intake Manifold Assembly
GWWA24-10379Courtesy of AUDI OF AMERICA, LLC
  1. Intake Air Temperature Sensor -G42- Bolt
    • 5 Nm
  2. Intake Air Temperature Sensor -G42-
  3. Intake Manifold
  4. EVAP Canister Purge Regulator Valve -N80-
  5. Single-Piston High-Pressure Pump Bolt
    • 3 pieces
    • 10 Nm
  6. Fuel Pressure Regulator Valve -N276-
  7. Mechanical Single-Piston High-Pressure Pump
    • With Fuel Pressure Regulator Valve -N276- and Low Fuel Pressure Sensor -G410-
    • An electrical fuel pump, located in the fuel tank, supplies fuel to the mechanical high-pressure pump at a pressure of approximately 6 bar.
    • When installing the high-pressure pump, make sure that no dirt enters the fuel system.
    • The fuel system must be pressureless, releasing fuel pressure. Refer to BEFORE OPENING HIGH PRESSURE FUEL INJECTION SYSTEM .
    • Do not install fuel lines with tension
    • Removing and installing, refer to HIGH PRESSURE PUMP
  8. Fuel Return Line to Fuel Tank Connection
    • Do not install fuel line with tension (be aware of cleanliness)
  9. Fuel Supply Line to Fuel Rail
    • Replace connecting piece
    • Tighten connections to 30 Nm
    • Do not install fuel line with tension (be aware of cleanliness). Torque specification: 27 Nm.
  10. Intake Flap Motor -V157- with Intake Manifold Runner Position Sensor -G336-
  11. Intake Flap Motor -V157- with Intake Manifold Runner Position Sensor -G336- Bolt
    • 7 Nm
  12. Intake Manifold Support
  13. Intake Manifold Support Bolt
    • 23 Nm
  14. Throttle Valve Control Module -J338-, Throttle Drive for Electronic Power Control -G186-,
    • Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) -G187- and Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) -G188-
    • After replacing the throttle valve control module -J338-, it must be adapted to the engine control module -J623- see vehicle diagnosis and service systemVAS 5052 "Guided Function".
  15. Throttle Valve Control Module -J338- Bolt
    • 4 pieces
    • 7 Nm
  16. Intake Manifold Support Nut
    • 10 Nm
  17. Seal
    • Replace
  18. Fuel Rail
  19. Fuel Pressure Sensor -G247-
    • 20 Nm
