After-Run Coolant Pump

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removing

-- Remove the front noise insulation -1-. Refer to Removal and Installation .

Fig 1: Front Noise Insulation -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

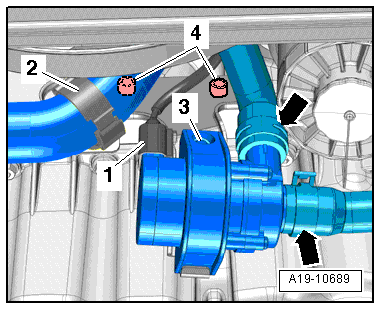

Fig 2: Removing Bolt -3- And After-Run Coolant Pump -V51-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Lay a cloth below to catch escaping coolant.

-- Clamp off the coolant hoses -arrow- with the 3094 and remove.

-- Remove the bolt -3- and the after-run coolant pump -V51-.

NOTE:

Ignore -2 and 4-.

Installing

Installation is done is reverse order, observe the following:

-- Install the noise insulation. Refer to Removal and Installation .
