After-Run Coolant Pump Overview

WARNING: This page is about a different variant/trim than selected.

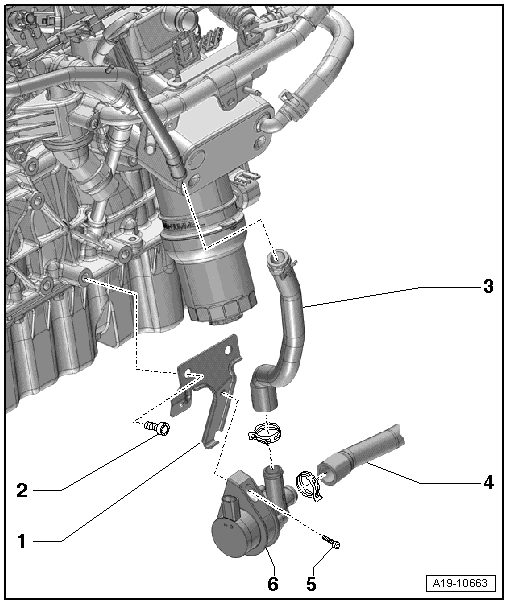

Fig 1: After-Run Coolant Pump Overview
GWWA19-10663Courtesy of AUDI OF AMERICA, LLC
  1. Bracket
  2. Bolt
    • 9 Nm
  3. Coolant Hose
  4. Coolant Hose
  5. Bolt
    • 4 Nm
  6. After-Run Coolant Pump -V51-
