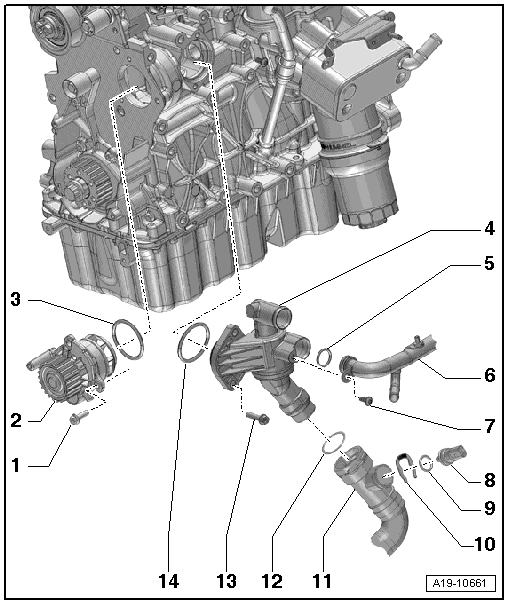

Coolant Pump And Coolant Thermostat With Housing Overview
WARNING: This page is about a different variant/trim than selected.
WARNING:
Risk of scalding due to hot steam and hot coolant.
- The coolant system is under pressure when the engine is warm.
- Reduce pressure by covering coolant reservoir cap with a cloth and carefully open.
- Bolt
- 15 Nm
- Coolant Pump
- Removing and installing, refer to COOLANT PUMP
- O-ring
- Replace
- Coolant Thermostat with Housing
- Removing and installing, refer to COOLANT THERMOSTAT WITH HOUSING
- O-ring
- Replace
- Front Coolant Pipe 1
- Removing and installing, refer to FRONT COOLANT PIPES 1 AND 2
- Bolt
- Tightening specifications COOLANT PIPES OVERVIEW
- Engine Coolant Temperature Sensor on Radiator -G83-
- Removing and installing, refer to ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR
- O-ring
- Replace
- Retaining Clip
- Coolant Hose
- With a mount for the engine coolant temperature sensor on radiator
- O-ring
- Replace
- Bolt
- 9 Nm
- O-ring
- Replace
