Camshaft, Measuring Axial Play
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Dial Gauge Holder VW 387
- Dial Gauge VAS 6079
Procedure
-- Remove the roller rocker levers and the hydraulic adjusting elements. Refer to CAMSHAFTS .
- The bearing cap of axial bearing for respective camshaft remains installed.

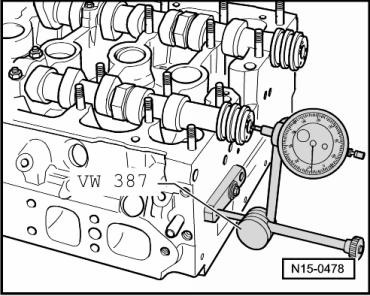

-- Secure VW 387 with VAS 6079 on cylinder head.
Axial clearance:
- Wear limit: 0.1 mm.
