Signal Horns Overview

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

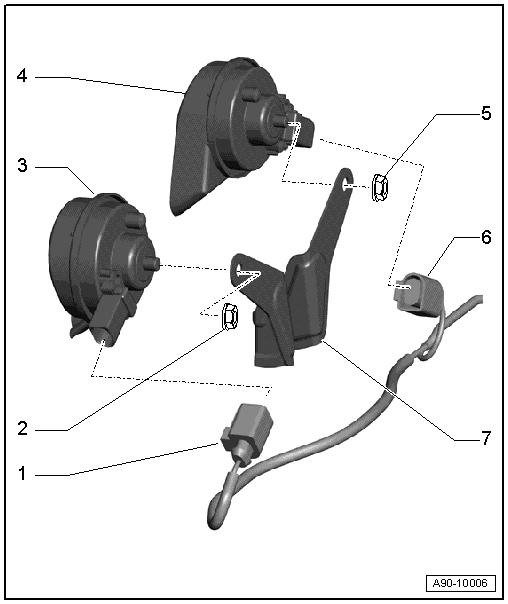

Fig 1: Identifying Signal Horns Overview

Courtesy of AUDI OF AMERICA, LLC

1. Electrical Connector
   • For High Tone Horn -H2-
2. Nut
   • 9 Nm
3. High Tone Horn -H2-
   • Removing and installing, refer to HORNS -H2- / -H7- .
4. Low Tone Horn -H7-
   • Removing and installing, refer to HORNS -H2- / -H7- .
5. Nut
   • 9 Nm
6. Electrical connector
   • For Low Tone Horn -H7-.
7. Bracket
   • For signal horns.
