Horns -H2- / -H7-

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

Removing

-- Switch off ignition and remove ignition key.

-- Remove front bumper cover. Refer to Removal and Installation .

-- Disconnect electrical connectors -1 and 4-.

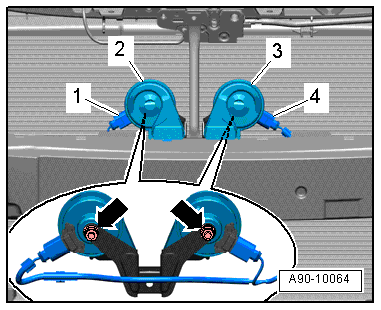

Fig 1: Identifying Nuts, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -arrows-.

-- Remove signal horn -2 or 3- from bracket.

Installing

• Tightening specification. Refer to SIGNAL HORNS OVERVIEW .

Install in reverse order of removal. Note the following:

-- Install front bumper cover. Refer to Removal and Installation .
