Component Location Overview - Seat Belts And Attaching Points

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

In the illustration, seat belts in a sedan model with a fixed backrest is shown.

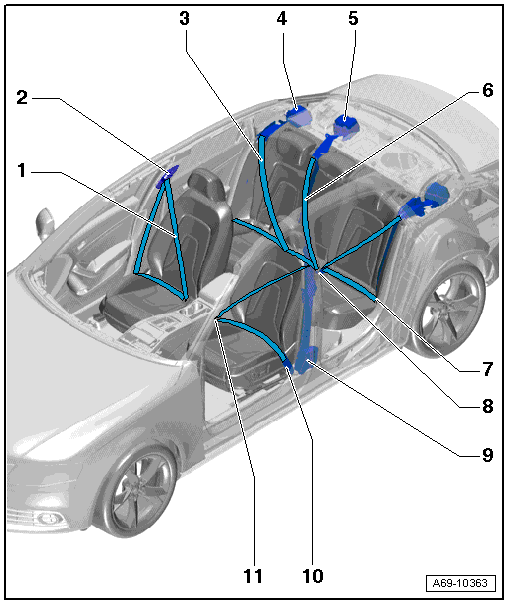

Fig 1: Overview Of Seat Belts And Attaching Points
GWWA69-10363Courtesy of AUDI OF AMERICA, LLC
  1. Front Three-Point Seat Belt
  2. Seat Belt Height Adjuster
  3. Rear Outside Three-Point Seat Belt
  4. Automatic Belt Retractor
    • for rear outer three-point seat belt
    • Market-specific driver side: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
    • Market-specific front passenger side: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
    • Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
  5. Automatic Belt Retractor
    • For the rear three-point seat belt in the center
    • Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-

      Vehicles with:

      • for fixed backrest
      • for folding backrest
    • Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
  6. Rear Three-Point Seat Belt in the Center Seating Position
  7. Rear Belt Anchor
  8. Rear Seat Belt Latch
  9. Automatic Belt Retractor
    • For the front three-point seat belt
    • Drivers side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
    • Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
  10. Front Belt End Fitting
  11. Front Seat Belt Latch
