Abs/Electronic Stabilization Program, BOSCH 8.1, Component Overview

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Bosch ESP 8.1 has the following functions:

The brake system is distributed diagonally. The vacuum brake servo unit boosts the brakes pneumatically.

NOTE:

ABS malfunctions do not affect the brake system and the booster. Conventional brake system stays operative even without ABS. A change in braking behavior should be checked. When the ABS warning lamp comes on the rear wheels can lock-up early when braking!

Malfunction sources are reduced by direct connection of components named. The components are replaced instead of repaired.

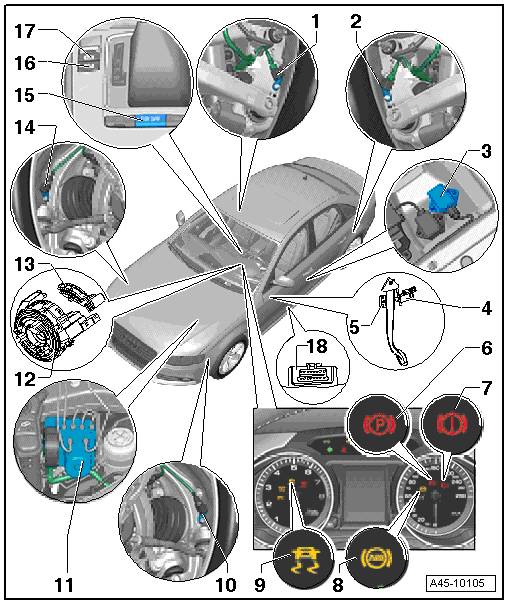

Fig 1: Abs/Electronic Stabilization Program, Bosch 8.1 Component Overview
GWWA45-10105Courtesy of AUDI OF AMERICA, LLC
  1. 1 -

    Right Rear ABS Wheel Speed Sensor -G44-

  2. 2 -

    Left Rear ABS Wheel Speed Sensor -G46-

  3. 3 -

    ESP Sensor Unit -G419-

    • 9 Nm
    • Component location: under the left seat.
    • Removing and installing, refer to ESP Sensor Unit -G419- / ESP Sensor Unit 2 -G536- .
    • Combined transverse acceleration sensor -G200-, rotation rate sensor -G202-, and longitudinal acceleration sensor -G251-.
    • Can be tested in "Guided fault finding  " with the vehicle diagnostic tester.
    • Observe installation instructions.
    • Check the arrow in the direction of travel when installing.
  4. 4 -

    Brake Lamp Sensor

    • Component location: on brake pedal.
    • Removing and installing, refer to BRAKE LAMP SENSOR .
    • Can be tested in "Guided fault finding  " with the vehicle diagnostic tester.
      NOTE:

      Cannot be reused after removal.

  5. 5 -

    Brake Pedal

  6. 6 -

    Electromechanical Parking Brake Indicator Lamp -K213-

    • Located in the tachometer.
    • Lights up when the parking brake is engaged and the ignition is switched on.
    • Lights up for 20 seconds when the parking brake is engaged and the ignition is switched off.
    • Blinks after engaging the parking brake if the brake pressure is not sufficient to prevent the vehicle from rolling.
  7. 7 -

    Brake System Indicator Lamp -K118-

    • Located in the tachometer.
    • Turns on with the ABS indicator lamp when the ABS system malfunctions.
    • Blinks when the brake fluid is too low.
    • Blinks when there is a malfunction in the brake system.
      NOTE:

      The malfunction is indicated more precisely when the "SET button" in the instrument cluster is pressed.

  8. 8 -

    ABS Indicator Lamp -K47-

    NOTE:

    The indicator lamp monitors the ABS and the Electronic Differential Lock (EDL).

    • Component location: in the tachometer.
    • Lights up for several seconds when ignition is switched on and goes out after an automatic ABS system self-check if there are no malfunctions in the ABS system.
    • There is an ABS malfunction if the indicator light:
      • Does not light up when ignition is switched on.
      • Does not go out after a few seconds.
      • Lights up while driving.
    • ABS malfunctions have no effect on the brake system. However, a change in braking behavior should be checked.
      NOTE:

      The Electronic Differential Lock (EDL) and ABS work together. The ABS indicator light lights up when the EDL malfunctions.

  9. 9 -

    ASR/ESP Indicator Lamp -K155-

    • Component location: in the tachometer.
    • Blinks when driving if ESP/ASR engages regularly.
    • Comes on when ignition is switched on and goes out after a short self-check.
    • Comes on if there is an ESP system malfunction.
    • Comes on if there is an ABS system malfunction because ESP and ABS work together.
    • Comes on when the ASR is switched off.
    • Lights up during sensor programming if:
      • The battery was disconnected and connected.
      • Vehicle was started with jump start.
      • The battery is too weak.
    • After the sensor programming procedure, the ESP light goes out after driving a short distance.
  10. 10 -

    Left Front ABS Wheel Speed Sensor -G47-

    • Removing and Installing, refer to FRONT ABS WHEEL SPEED SENSORS .
    • Can be tested in "Guided fault finding  " with the vehicle diagnostic tester.
  11. 11 -

    ABS Hydraulic Unit -N55- / ABS Control Module -J104-

  12. 12 -

    Return Ring

  13. 13 -

    Steering Angle Sensor -G85-

    • Component location: Installed in coil ring with slip ring on steering column, refer to => 69.
    • Removing and Installing, refer to Steering Angle Sensor -G85- .
    • Perform zero adjustment.
  14. 14 -

    Right Front ABS Wheel Speed Sensor -G45-

  15. 15 -

    ASR/ESP Button -E256-

    • Component location: Inside center console.
    • Switches the ASR off and on.
  16. 16 -

    Audi Hold Assist Pressure Switch

  17. 17 -

    Parking Brake Pressure Switch -F234-

  18. 18 -

    Diagnostic Connection

    • Component location: cover in driver footwell.
Fig 2: Connecting Diagnostic Cable VAS 5051/5A To Diagnostic Connector
GWWA00-10303Courtesy of AUDI OF AMERICA, LLC
