Hydraulic Fluid Cooler, Removing And Installing, RS Models: Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following. Refer to OVERVIEW - HYDRAULIC POWER STEERING, 8-CYLINDER FSI - "Hydraulic Fluid Cooler to the Condenser - RS Models" (See Figure).

-- The markings -2- on the hose line must point upward in the >>12 o'clock<< position.

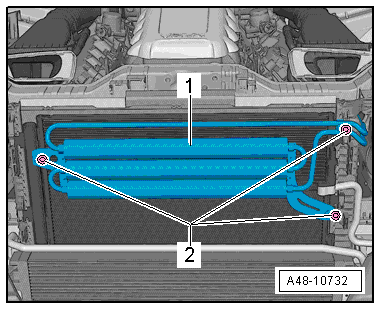

Fig 1: Identifying Markings -2- On Hose Line Must Point Upward In 12 O'clock Position

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Counterhold the pipes when connecting the lines.

-- Top off Hydraulic Oil.

-- Clean any oiled places.

-- Bleed the steering. Refer to STEERING, BLEEDING AFTER REPLACING .

-- Check power steering fluid level. Refer to POWER STEERING FLUID LEVEL, CHECKING .

-- Check all open line connections for leaks. Refer to STEERING, CHECKING FOR LEAKS .

-- Install the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

NOTE:

Secure all hose connections with hose clamps appropriate to the model.
