Transmission cover, servicing: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

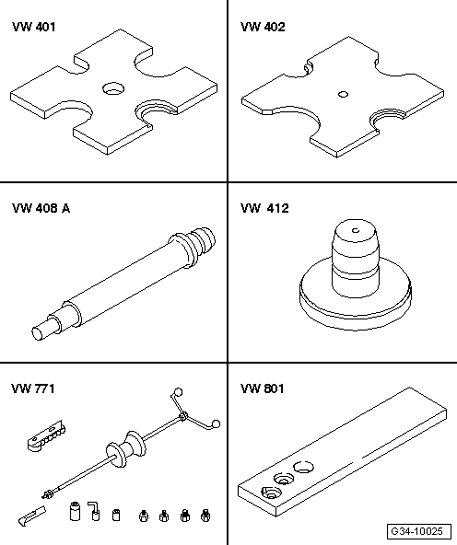

Special tools, testers and auxiliary items required
- Thrust plate VW 401
- Thrust plate VW 402
- Punch VW 408 A
- Punch VW 412
- Slide Hammer-Complete Set VW 771
- Holding plate VW 801

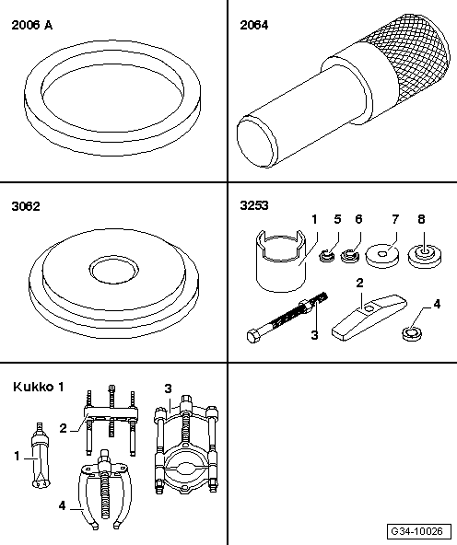

Special tools, testers and auxiliary items required
- Thrust ring 2006 A
- Lock pin 2064
- Thrust pad 3062
- Alignment fixture 3253
- - 1 - Internal extractor Kukko 21/2
- - 1 - Internal extractor Kukko 21/4
- - 4 - Support Kukko 22/2
- Depth gauge
- Stud M10

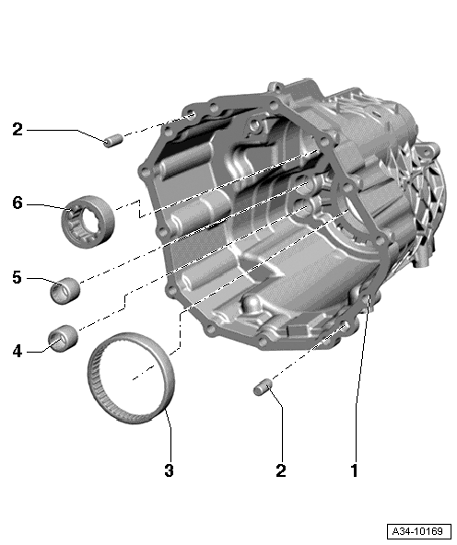

1 - Transmission cover
2 - Alignment pin
- Qty. 2
- Place in transmission cover
- Drive in flush to rear side of housing joint surface
3 - Needle bearing
- For hollow shaft mounting in transmission cover
- Pressing out Press needle bearing out of transmission cover
- Pressing in Press needle bearing into transmission cover
- Secure after installing with peen Secure needle bearing and roller housing in transmission cover with peen
4 - Ball sleeve
- For reverse gear selector rod
- Pulling out Remove ball sleeve from transmission housing
- Pressing in Press ball sleeve into transmission cover
- Measure press-in depth Ball sleeve press-in depth in transmission cover
5 - Ball sleeve
- For selector rod for 1st and 2nd gear
- Pulling out Remove ball sleeve from transmission housing
- Pressing in Press ball sleeve into transmission cover
- Measure press-in depth Ball sleeve press-in depth in transmission cover
6 - Roller sleeve
- For input shaft mounting in transmission cover
- Always replace
- Pulling out Remove roller sleeve from transmission cover
- Pressing in Carefully press new roller sleeve into transmission cover to stop.
- Secure after installing with peen Secure needle bearing and roller housing in transmission cover with peen
