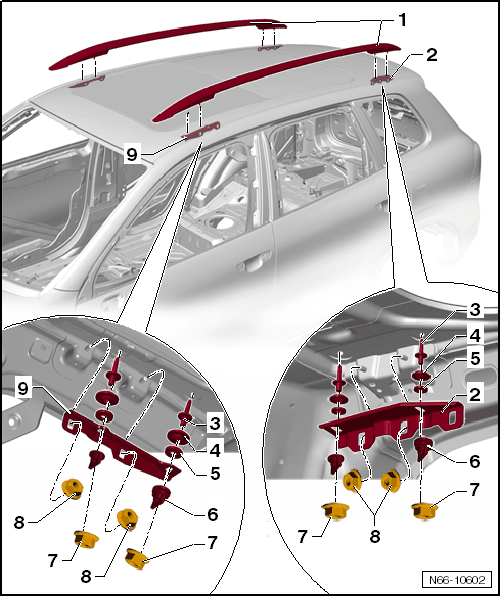

Overview - Roof Railing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Roof Railing
- Removing. Refer to REMOVING .
- Installing. Refer to INSTALLING .
- Rear Angle Bracket
- Removing and installing. Refer to ROOF RAIL ANGLE BRACKET, REMOVING AND INSTALLING .
- Install a new angle bracket. Refer to NEW ANGLE BRACKET, INSTALLING
- Centering Pin
- Only in the case of a new angle bracket
- Upper Conical Washer
- Lower Conical Washer
- Mounting Nut
- For the centering pin in the case of a new angle bracket
- Hex Nut
- 10 Nm.
- Roof rail threaded connection
- Quantity: 4 on each side
- Bolt
- 10 Nm.
- Angle bracket threaded connection
- quantity: 2 per bracket
- Front Angle Bracket
- Removing and installing. Refer to ROOF RAIL ANGLE BRACKET, REMOVING AND INSTALLING .
- Install a new angle bracket. Refer to NEW ANGLE BRACKET, INSTALLING
