Direct Shift Gearbox (DSG) Transmission MECHATRONIC -J743-

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removing

CAUTION:

Risk of transmission damage.

  • Do not run engine or tow the vehicle with the oil pan removed or without transmission fluid.
NOTE:

General repair instructions, refer to REPAIR INFORMATION .

Observe cleanliness rules when working on transmissions, refer to CLEAN WORKING CONDITIONS .

-- Remove the ATF pan. Refer to OIL PAN .

-- Remove the fan shroud. Refer to [For engine(s) CETA, CCTA] Removal and Installation or to [For engine(s) CDMA] Removal and Installation or to [For engine(s) CBRA] Removal and Installation or to [For engine(s) BPY] Removal and Installation .

Fig 1: Fan Shroud Bolts And Electrical Connector
GWWA19-10146Courtesy of AUDI OF AMERICA, LLC

On Vehicles with a Lower Coolant Hose on the Left Side:

Fig 2: Coolant Hose Under -1-
GWWA19-10607Courtesy of AUDI OF AMERICA, LLC
WARNING:

Risk of burning due to hot steam and hot coolant.

  • When the engine is warm, the cooling system is under pressure.
  • Reduce pressure by covering coolant expansion tank cap with cloths and carefully opening.

-- Drain the coolant. Refer to [For engine(s) CETA, CCTA] General Information or to [For engine(s) CDMA] General Information or to [For engine(s) CBRA] General Information or to [For engine(s) BPY] General Information .

-- Remove the lower coolant hose -1-. Refer to [For engine(s) CETA, CCTA] Removal and Installation or to [For engine(s) CDMA] Removal and Installation or to [For engine(s) CBRA] Removal and Installation or to [For engine(s) BPY] Removal and Installation .

All Vehicles:

CAUTION:

Risk of destroying Mechatronic with electrostatic discharge.

  • Do not touch contacts in connector with hands.

-- To discharge electrostatic, touch vehicle ground with hand (without glove).

CAUTION:

Risk of damaging electrical wire.

  • Do not pull on electrical wire.

-- Disconnect the connector -1- from the transmission input speed sensor -G182- and clutch oil temperature sensor -G509- using T10465 -arrow-.

Fig 3: Identifying Connector -1- And Release Tool -T10465-
GWWN34-11779Courtesy of AUDI OF AMERICA, LLC
NOTE:

If electrical wire is damaged, input speed sensor and clutch oil temperature sensor must be replaced.

-- First remove the line from lower clamp -arrow I-.

Fig 4: Locating Wire Clamps
GWWN34-10519Courtesy of AUDI OF AMERICA, LLC

-- Remove the electric wire from the clip -arrow II- and move it to the side. Be careful not to bend it.

-- Remove the bolts in the following sequence: -1 to 10-.

Fig 5: Identifying Mounting Bolts Removal Sequence
GWWN35-10099Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of damaging the Mechatronic.

  • After removing the bolts from the mechatronic, do not remove it.

-- Remove the bolts in the following sequence: -1 to 10-.

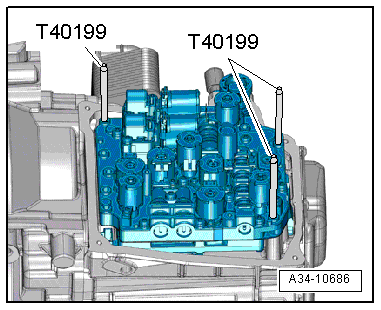

Fig 6: T40199
GWWA34-10686Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of damaging the Mechatronic.

  • Without the T40199, the long sensor arm of the mechatronic will be damaged during removal.

-- Attach 3 threaded holes for the bolts of the mechatronic for each T40199, as shown in the image.

NOTE:

The illustration shows the installation position with the cover removed for the oil pump.

Fig 7: Identifying Alignment Of Pin In Transmission Housing And Sensor Arm In Guide
GWWN35-10100Courtesy of AUDI OF AMERICA, LLC

The cover for the oil pump must not be removed for this work.

The long sensor arm -B- of the Direct Shift Gearbox (DSG) Transmission Mechatronic -J743- may not be damaged.

-- Carefully remove DSG transmission Mechatronic from the T40199.

CAUTION:

Risk of damaging the Mechatronic.

  • The tabs -arrow 2- on the sensor arm -B- can break off.
  • Do not lift the Mechatronic by sensor arm or lay it on arm.
NOTE:

If sensor arm is damaged, the Mechatronic must be replaced.

-- Store Mechatronic properly.

Fig 8: Caution Handling Mechatronic
GWWN34-10528Courtesy of AUDI OF AMERICA, LLC

Installing

Fig 9: Identifying O-Rings On Connection Of Mechatronic
GWWN34-10527Courtesy of AUDI OF AMERICA, LLC

Install in reverse order, paying attention to the following:

Tightening specifications, refer to:

-- Remove all the caps on the new Mechatronic if replacing the DSG transmission Mechatronic.

NOTE:

Replace the bolts for the DSG transmission Mechatronic.

Replace O-rings -arrows- on DSG transmission Mechatronic connector.

If DSG transmission Mechatronic is replaced, O-rings are contained in replacement part delivery package.

-- Carefully insert DSG transmission Mechatronic in transmission housing through the T40199.

Fig 10: Identifying T40199
GWWA34-10686Courtesy of AUDI OF AMERICA, LLC
NOTE:

The illustration shows the installation position with the cover removed for the oil pump.

Fig 11: Identifying Alignment Of Pin In Transmission Housing And Sensor Arm In Guide
GWWN35-10100Courtesy of AUDI OF AMERICA, LLC

The cover for the oil pump must not be removed for this work.

The long sensor arm -B- of the DSG transmission Mechatronic may not be damaged.

-- Make sure the alignment pin -A- in the transmission housing -arrow 1- and the sensor arm -B- in the guide -arrow 2- fit correctly on the transmission housing.

-- Carefully position the Mechatronic on the alignment pins and make sure the sensor arm moves into its installed position.

-- Remove the assembly pin T40199.

-- Tighten the DSG transmission Mechatronic bolts. Refer to Figure.

Fig 12: Identifying Direct Shift Gearbox Bolt Tightening Sequence
GWWN35-10101Courtesy of AUDI OF AMERICA, LLC

-- First engage electrical wire in upper retaining tab -arrow II- and then in lower tab -arrow* I-.

Fig 13: Locating Wire Clamps
GWWN34-10519Courtesy of AUDI OF AMERICA, LLC

-- Connect connector to input speed sensor and clutch oil temperature sensor and check connector engagement.

-- Install the oil pan. Refer to OIL PAN .

-- Install DSG transmission Mechatronic electrical connector and lock retainer by turning.

-- Install the particulate fan shroud. Refer to [For engine(s) CETA, CCTA] Removal and Installation or to [For engine(s) CDMA] Removal and Installation or to [For engine(s) CBRA] Removal and Installation or to [For engine(s) BPY] Removal and Installation .

Fig 14: Fan Shroud Bolts And Electrical Connector
GWWA19-10146Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of damage to the engine through overheating.

  • If the coolant was drained, only fill up the transmission fluid and do not start the engine yet.
  • First start the motor when the coolant is filled for the engine cooling.

-- Fill the transmission with fluid. Refer to TRANSMISSION FLUID, REPLACING OR FILLING AFTER REPAIR .

On Vehicles with a Lower Coolant Hose on the Left Side:

Fig 15: Coolant Hose Under -1-
GWWA19-10607Courtesy of AUDI OF AMERICA, LLC

-- Install coolant hose under -1-. Refer to [For engine(s) CETA, CCTA] Removal and Installation or to [For engine(s) CDMA] Removal and Installation or to [For engine(s) CBRA] Removal and Installation or to [For engine(s) BPY] Removal and Installation .

-- Fill coolant system. Refer to [For engine(s) CETA, CCTA] General Information or to [For engine(s) CDMA] General Information or to [For engine(s) CBRA] General Information or to [For engine(s) BPY] General Information .

All vehicles:

-- Start the engine and run at idle.

-- Press brake and shift through all selector lever positions "P, R, N, D, S" at idle, retaining each position for at least 3 seconds.

-- Move the selector lever into "P".

-- Transmission fluid level, checking and filling, refer to TRANSMISSION FLUID, CHECKING AND FILLING .

-- Perform a basic setting using the vehicle diagnostic tester.
