Crankshaft Seal, Transmission Side

Special tools and workshop equipment required

Prepare Pulling Sleeve T10122/2:

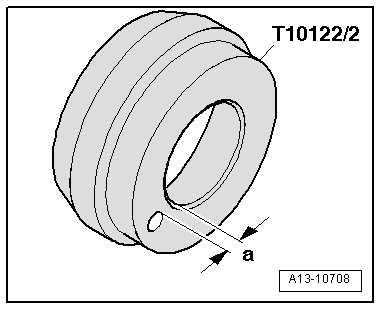

Fig 1: Identifying Pulling Sleeve T10122/2

Courtesy of AUDI OF AMERICA, LLC

-- Rework the alignment pin opening in the T10122/2 until it reaches the dimension -a- = 8 mm.

Procedure

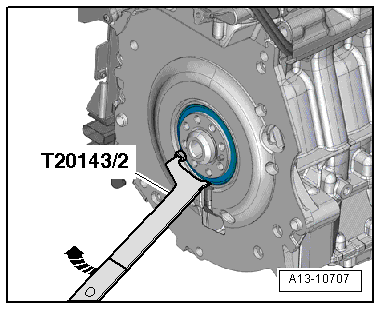

Fig 2: Removing Seal With Pulling Hook T20143/2

Courtesy of AUDI OF AMERICA, LLC

-- Remove dual mass flywheel. Refer to DUAL MASS FLYWHEEL .

-- Pry out the seal using T20143/2 -arrow-.

-- Clean the running and sealing surface.

-- Place the assembly device T10122/1 on the pull sleeve T10122/2 and slide the shaft seal -A- onto the pull sleeve.

Fig 3: Identifying Seal, Sleeve T10122/1 And Assembly Tool T10122/2

Courtesy of AUDI OF AMERICA, LLC

-- Remove the assembly device.

-- Position the T10122/2 with shaft seal -1- on the crankshaft.

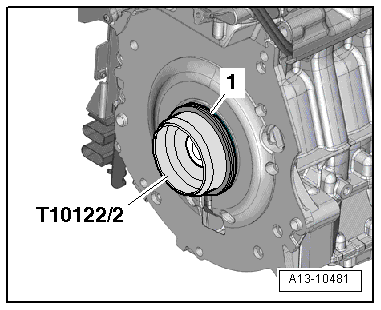

Fig 4: Installing Shaft Seal With Pulling Sleeve T10122/2

Courtesy of AUDI OF AMERICA, LLC

-- Press the shaft seal in evenly all around with the thrust piece T10122/3 until flush.

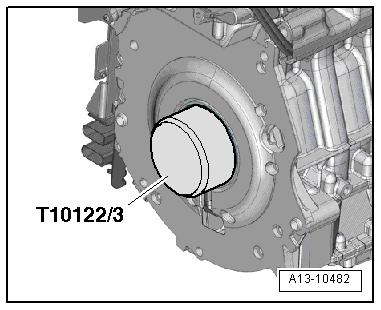

Fig 5: Installing Shaft Seal Thrust Piece T10122/3

Courtesy of AUDI OF AMERICA, LLC

-- Install dual mass flywheel. Refer to DUAL MASS FLYWHEEL .
