Exhaust Gas Temperature (EGT) Sensor 1 -G235-

Removing

Fig 1: Identifying Brake Fluid Reservoir, Removal

Courtesy of AUDI OF AMERICA, LLC

NOTE:

When installing, bring all cable ties back to the same positions.

-- Remove the engine cover -1- upward -arrows-.

-- Remove the bolts -arrows-.

Fig 2: Identifying Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Open the clamps -1 and 2- and remove the air guide pipe.

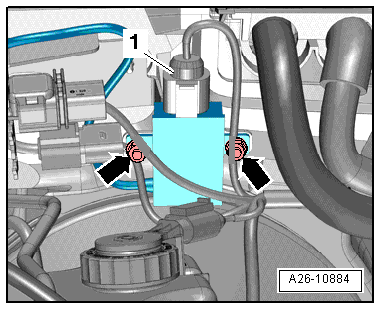

-- Disconnect the connector -1-.

Fig 3: Identifying Exhaust Gas Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Free up the wiring harness for the temperature sensor for the exhaust gas temperature sensor 1.

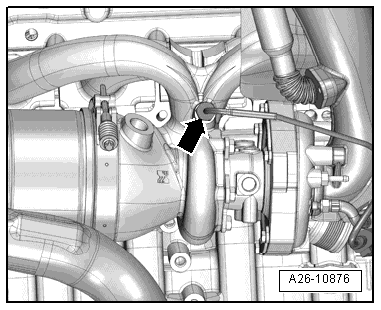

-- Remove the temperature sensor for exhaust gas temperature sensor 1 -arrow-.

Fig 4: Identifying Exhaust Gas Temperature Sensor 1

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order, paying attention to the following:

NOTE:

Coat the temperature sensor thread for the EGT sensor 1 with hot bolt paste.

-- Install the air guide pipe. Refer to CHARGE AIR COOLER OVERVIEW .
