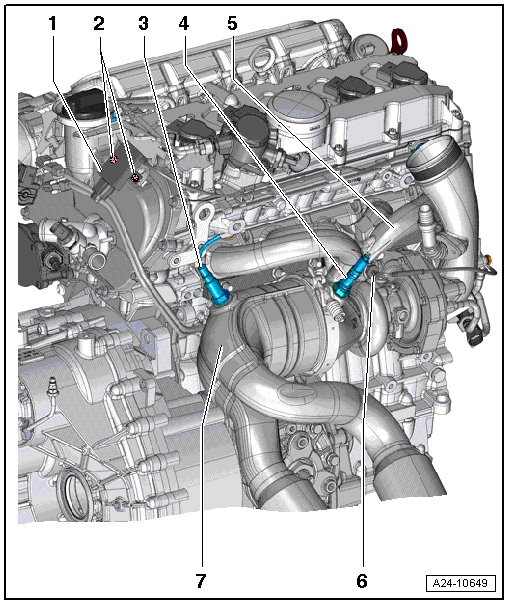

Exhaust Temperature Control Overview
- Exhaust Gas Temperature (EGT) Sensor 1 -G235-
- Common part with -6-
- Removing and installing, refer to Exhaust Gas Temperature (EGT) Sensor 1 -G235-
- Bolts
- 5 Nm
- Oxygen Sensor (O2S) after (TWC) Three Way Catalytic Converter -G130- with Heater for Oxygen Sensor (O2S 1 after Catalytic Converter -Z29-
- Removing and installing, refer to Removal and Installation
- Heated Oxygen Sensor (HO2S) -G39- with Oxygen Sensor (O2S) Heater -Z19-
- Removing and installing, refer to Removal and Installation
- Turbocharger
- Temperature Sensor
- 45 Nm
- Coat with hot bolt paste; Hot bolt paste.
- Common part with -1-
- For EGT Sensor 1
- Removing and installing, refer to Exhaust Gas Temperature (EGT) Sensor 1 -G235-
- Primary Catalytic Converter
