Fuel Injector Seals: Procedure

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

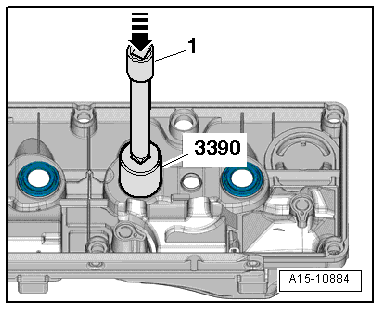

Fig 1: Identifying Torque Adapter And Short Extension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cylinder head cover. Refer to Removing .

-- Remove the fuel injector seal with the Carrier 3390 and the short extension -1- upward from below.

-- Install the new fuel injector seal with the Carrier 3390 and short extension -1- all the way and from above.

Fig 2: Identifying Torque Adapter And Short Extension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the cylinder head cover. Refer to Installing .
