Camshaft Adjuster Valve 1 -N205- / Exhaust Camshaft Adjustment Valve 1 -N318-

Removing

Fig 1: Identifying Brake Fluid Reservoir, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover -1- upward -arrows-.

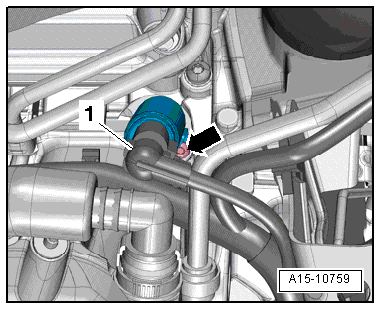

Camshaft Adjustment Valve 1:

Fig 2: Camshaft Adjustment Valve 1 -N205-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -arrow- and remove the camshaft adjustment valve 1.

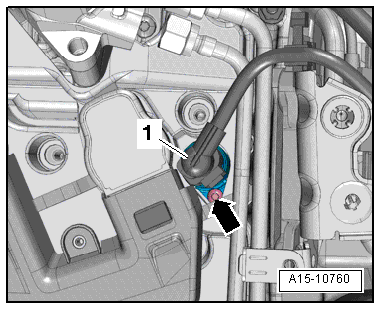

Exhaust Camshaft Adjustment Valve 1:

Fig 3: Identifying Camshaft Adjustment Valve Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -arrow- and remove the exhaust camshaft adjustment valve 1.

Installing

Install in reverse order, paying attention to the following:

For the correct tightening specifications, refer to CYLINDER HEAD COVER AND CYLINDER HEAD OVERVIEW .

NOTE:

Replace the O-ring.

Clean the camshaft adjustment valve as well as the mount in the cylinder head free of dirt and contaminants.

-- Coat the new O-ring with engine oil.
